ACT
ACT Mod-Twin 225 Extreme Rigid Street Clutch Kit For Subaru 04-20 WRX STI - T2S-S07
- SKU:
- ds_BHXS_T2S-S07
- UPC:
- 842385025410
- MPN:
- T2S-S07
- LTL:
- N
ACT Mod-Twin 225 Extreme Rigid Street Clutch Kit For Subaru 04-20 WRX STI - T2S-S07
ACT Mod-Twin 225 Extreme Rigid Street Clutch Kit
Specifications:
- Item Description: ACT Mod-Twin 225 Extreme Rigid Street Clutch Kit
- Product Weight (lbs.): 28.1
- Torque Capacity (ft/lbs.): 875
- Torque Capacity Over OE: 146%
- Disc Material: Organic
- Clutch Disc Diameter (Inches): 8.8
- Clutch Disc Diameter (Millimeters): 225
- Input Shaft Diameter (inches): 1
- Pressure Plate Type: Xtreme
- Warranty: ACT 12 Months
- SFI: 1.2
Description

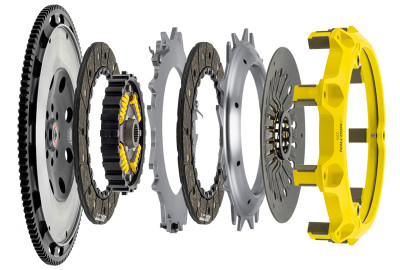

T2S-S07 Mod-Twin 225 XT Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD’s by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
Feel
Soft progressive engagement, light pedal effort, smooth shifting, with mild to moderate transmission gear noise
Life
Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions
Quality
Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances
Recommended Use
Street or Street/Strip
ACT Difference
Applying tactical engineering to the MOD-TWIN, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified
