IAG EJ Competition Series Oil Pan Package (Silver Pan / Pickup / Comp Baffle / Windage Tray) For WRX, STI, LGT, FXT
IAG EJ COMPETITION SERIES OIL PAN PACKAGE (SILVER PAN / PICKUP / COMP BAFFLE / WINDAGE TRAY) FOR WRX, STI, LGT, FXT

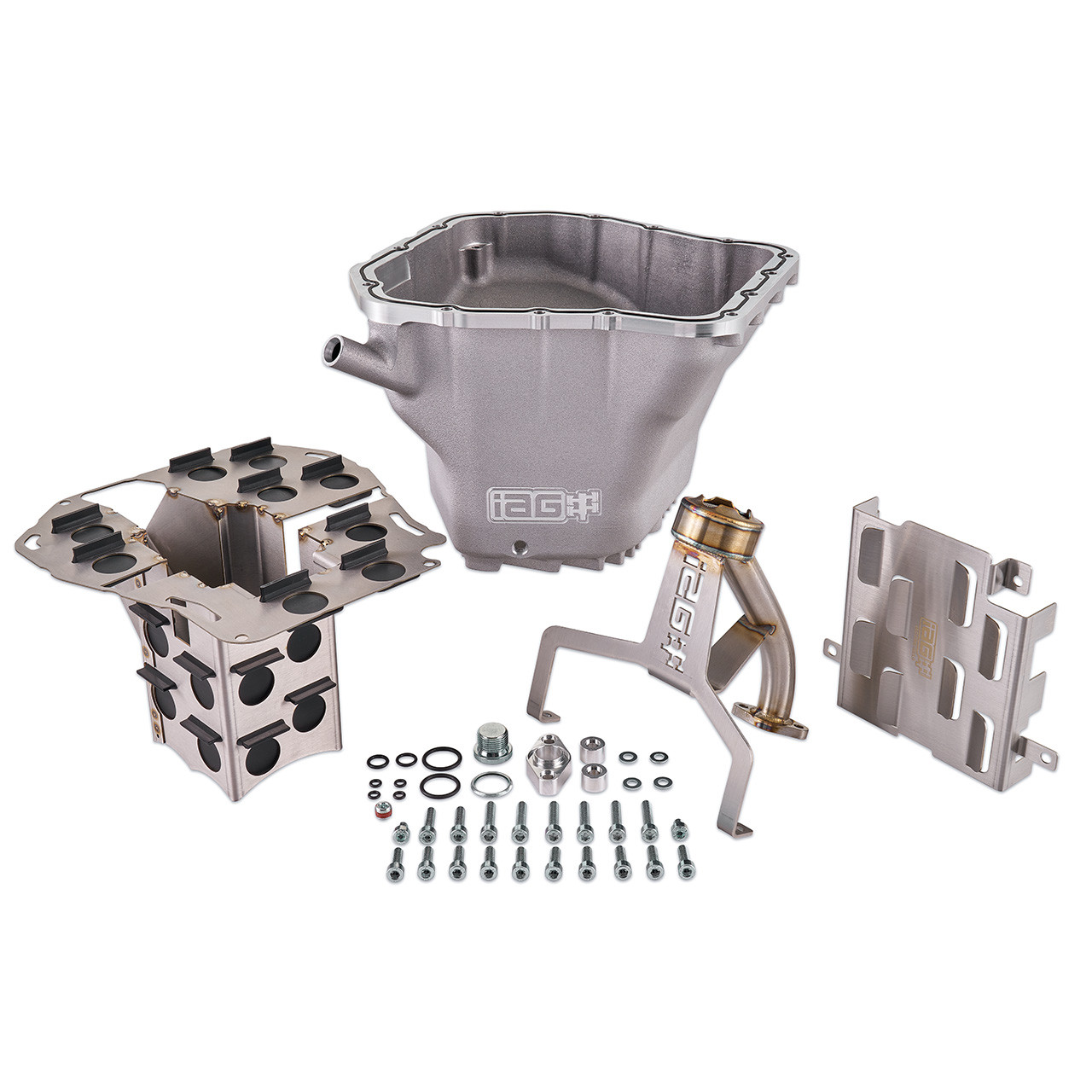

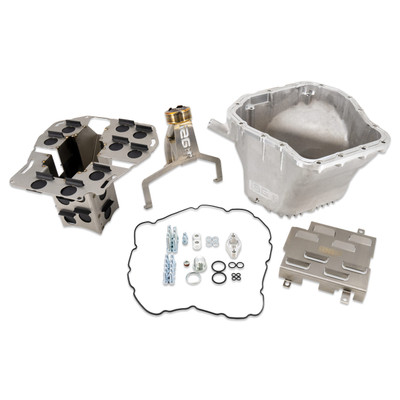

COMPETITION SERIES PACKAGE
IAG now offers our V2 Oil Pickup, Competition Series Baffle and Windage Tray combined with our Competition Oil Pan as a complete package. This bundle is designed to work together as a complete unit. The IAG EJ Competition Series Oil Pan Package comes complete with all the necessary components and hardware required to replace the oil pan on your WRX, STI, Legacy GT or Forester XT Subaru.

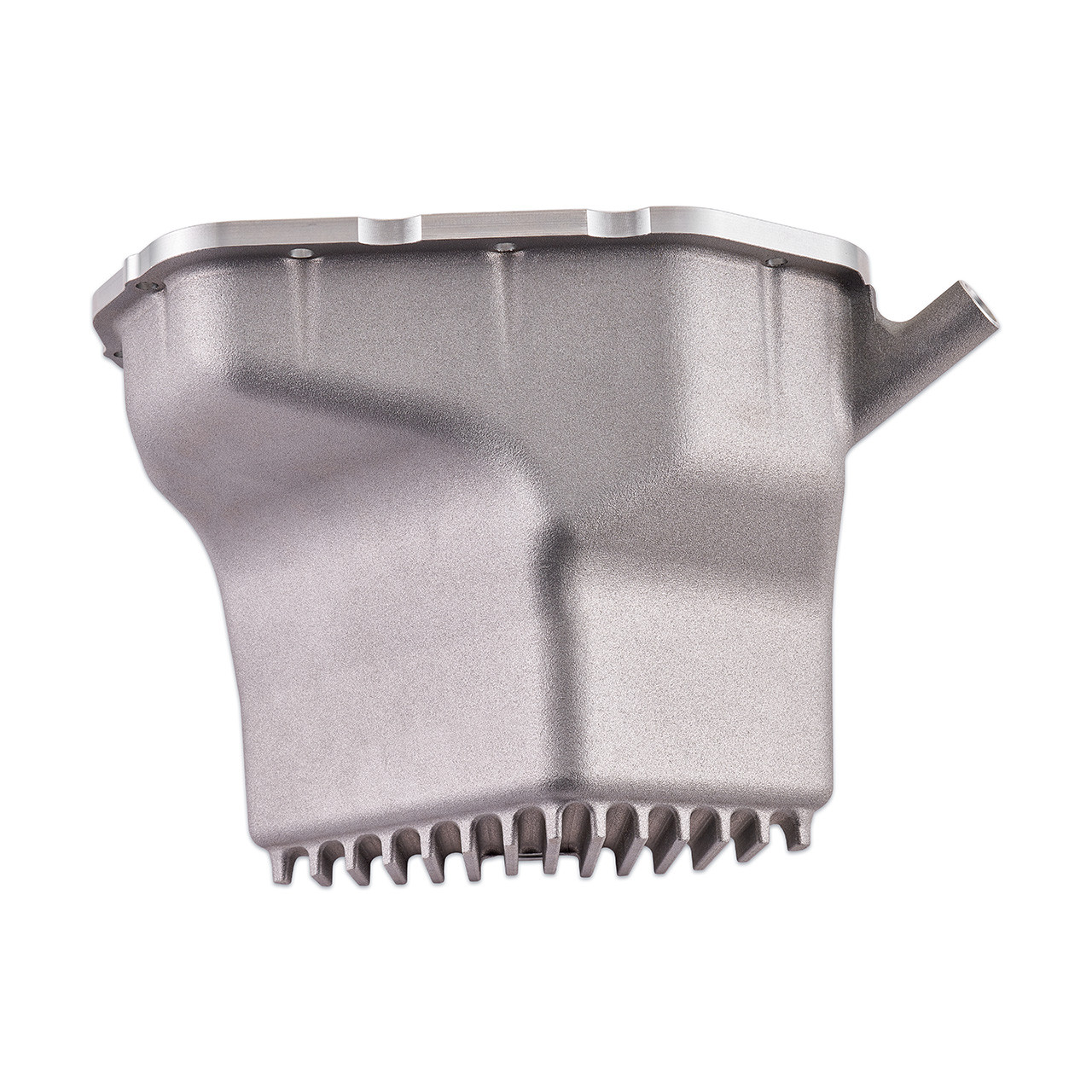

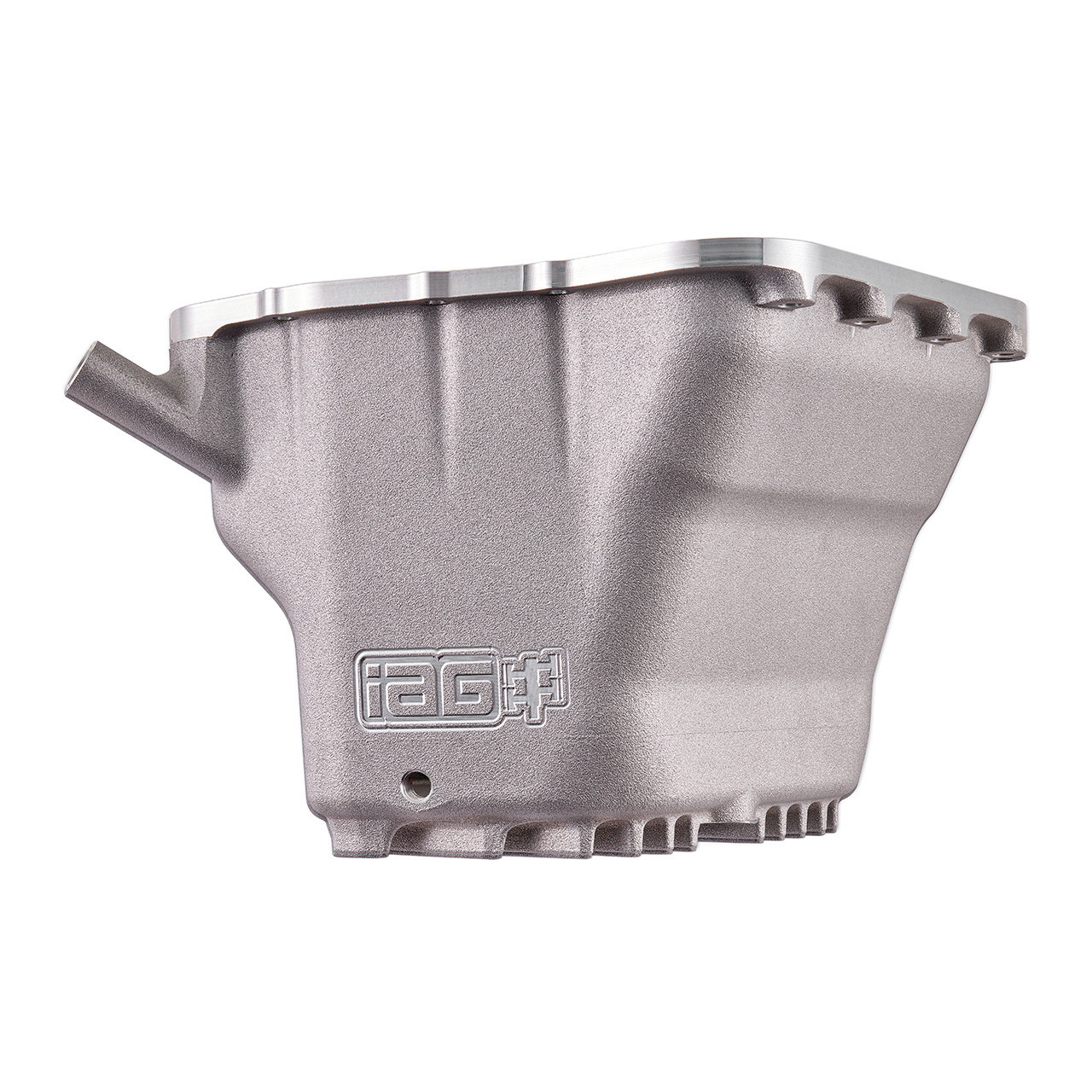

INCREASED OIL CAPACITY

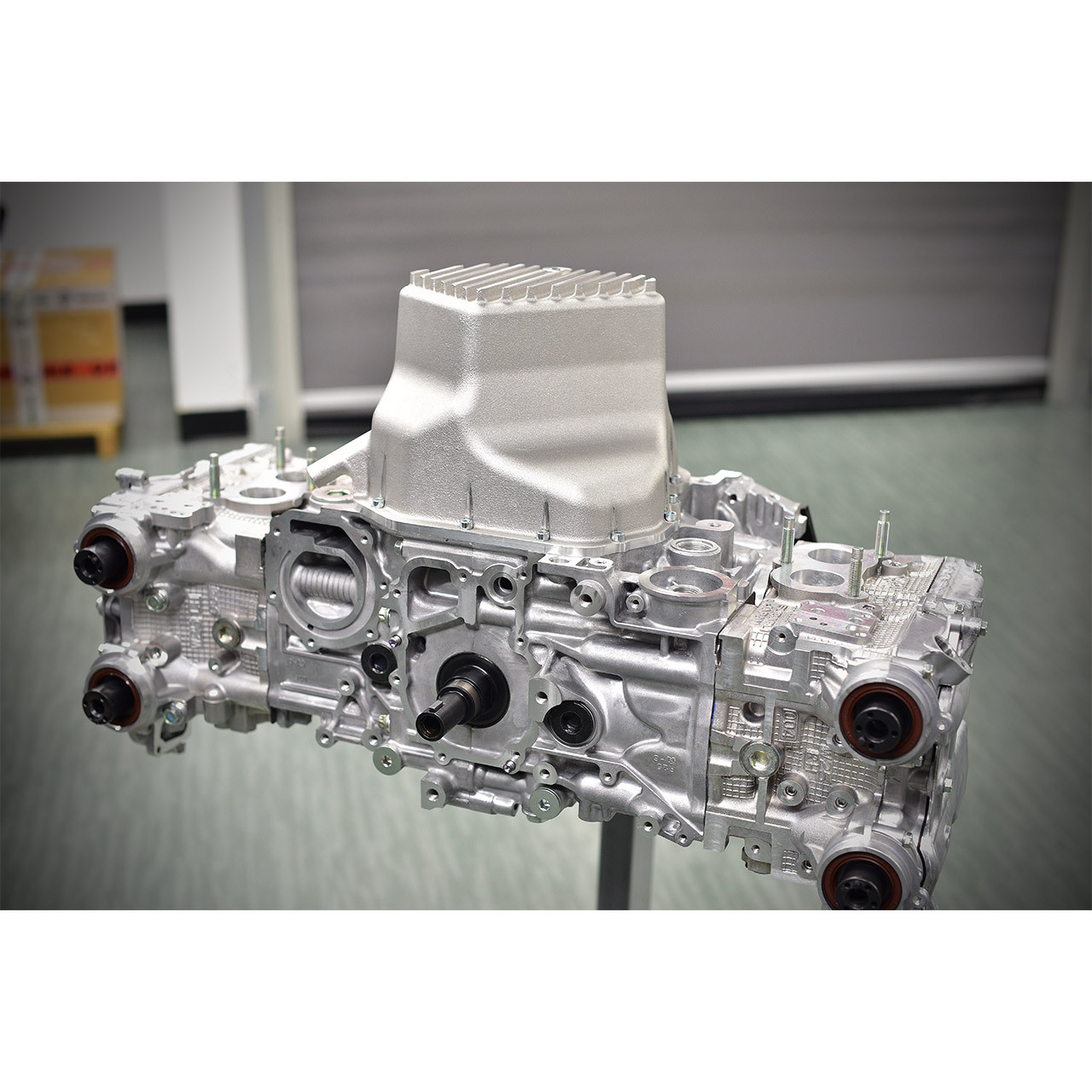

The IAG EJ Competition Series Oil Pan Package was created for Subaru WRX, STI, LGT, and FXT models. Its distinctive CNC-machined design makes it suitable for both street and track applications. This Competition Series Oil Pan is made from durable cast aluminum and it is compatible with various popular headers. The oil capacity of this pan surpasses the OEM version by up to 30%.

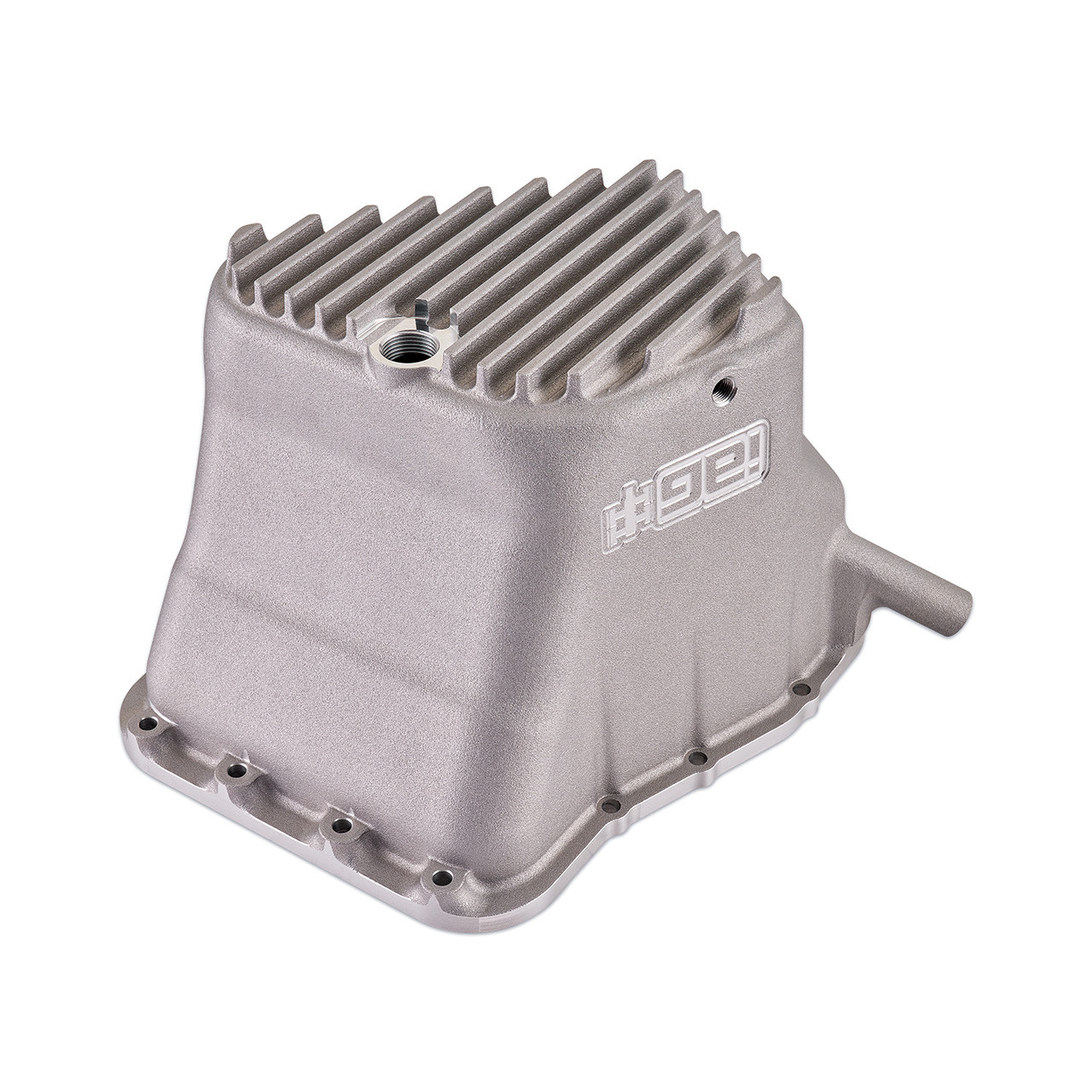

REDUCED OIL TEMP & BOTTOM FACING DRAIN PLUG

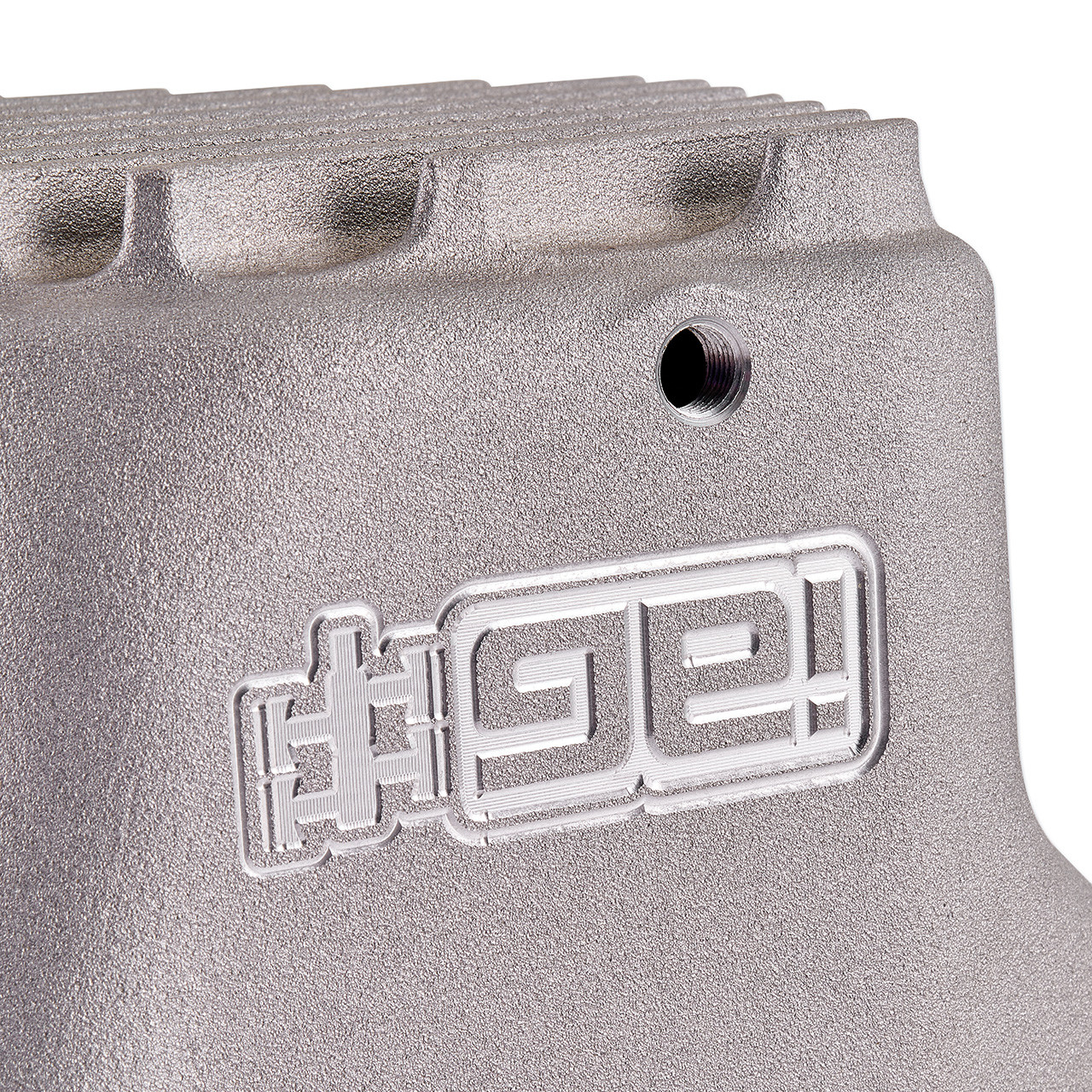

The Competition Series Oil Pan uses external cooling fins to help dissipate heat from the oil as air flows over them. It also comes with a bottom-facing drain plug for convenient maintenance access and to ensure thorough removal of any remaining used oil during servicing. The EJ Comp Series Oil Pan comes with a 1/8th inch NPT port, allowing for compatibility with various popular oil temperature sensors. In the event that you don't use the sensor port, we've provided a 1/8th inch NPT plug to seal the sensor housing.
ADVANCED ENGINEERING
The IAG Performance EJ Competition Series Oil Pan incorporates several thoughtfully designed features, such as an OEM-style drain plug and crush ring that removes the necessity to look for specialty washer sizes. The upper flange surface is precision-machined for better hardware fitment. The pan includes a molded o-ring for the upper flange, allowing for easier installation and removal, and there is no need to use silicone sealant when installing. The pan is designed to use the included OEM style Viton dipstick o-rings and has a unique chamfer to aid in the installation of the dipstick.

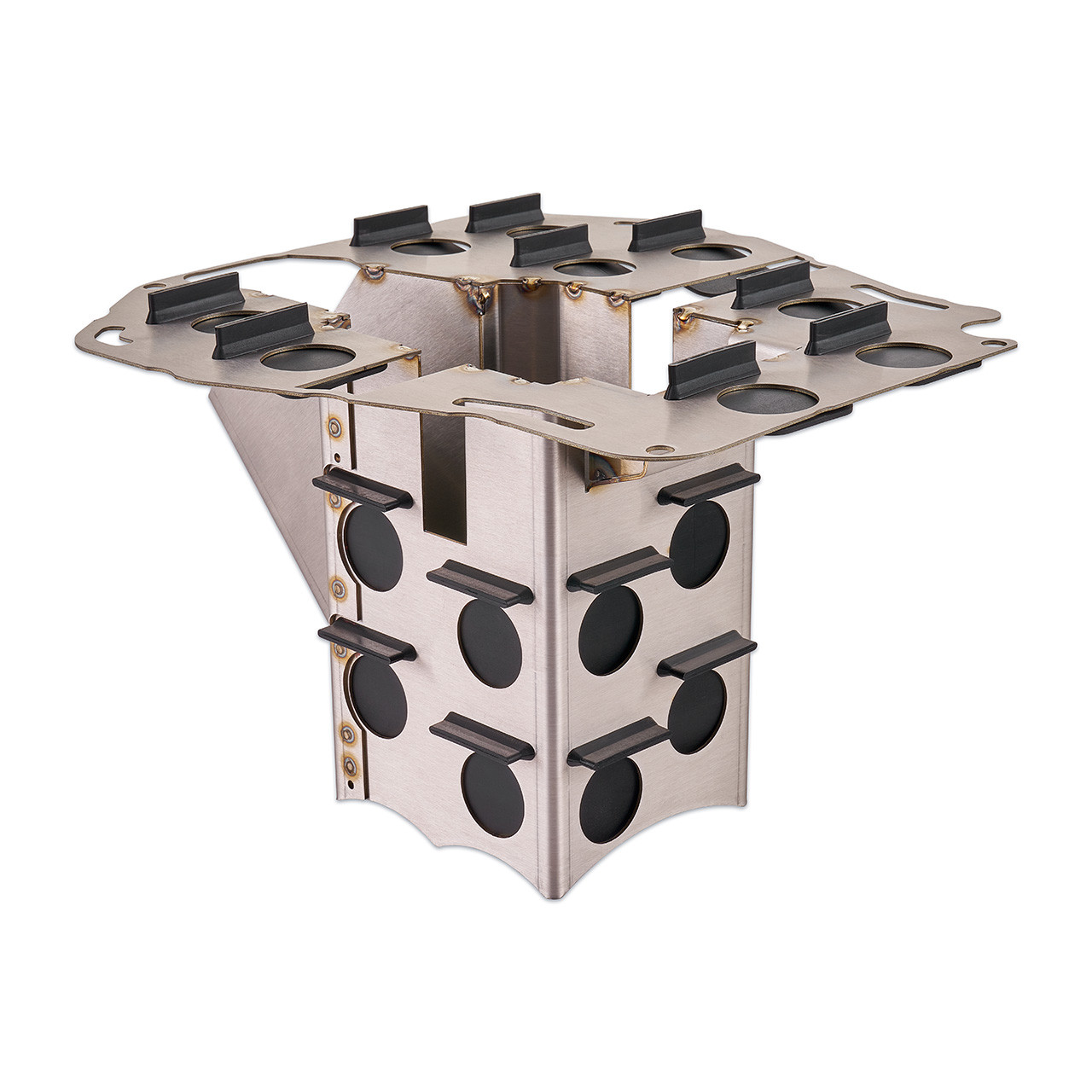

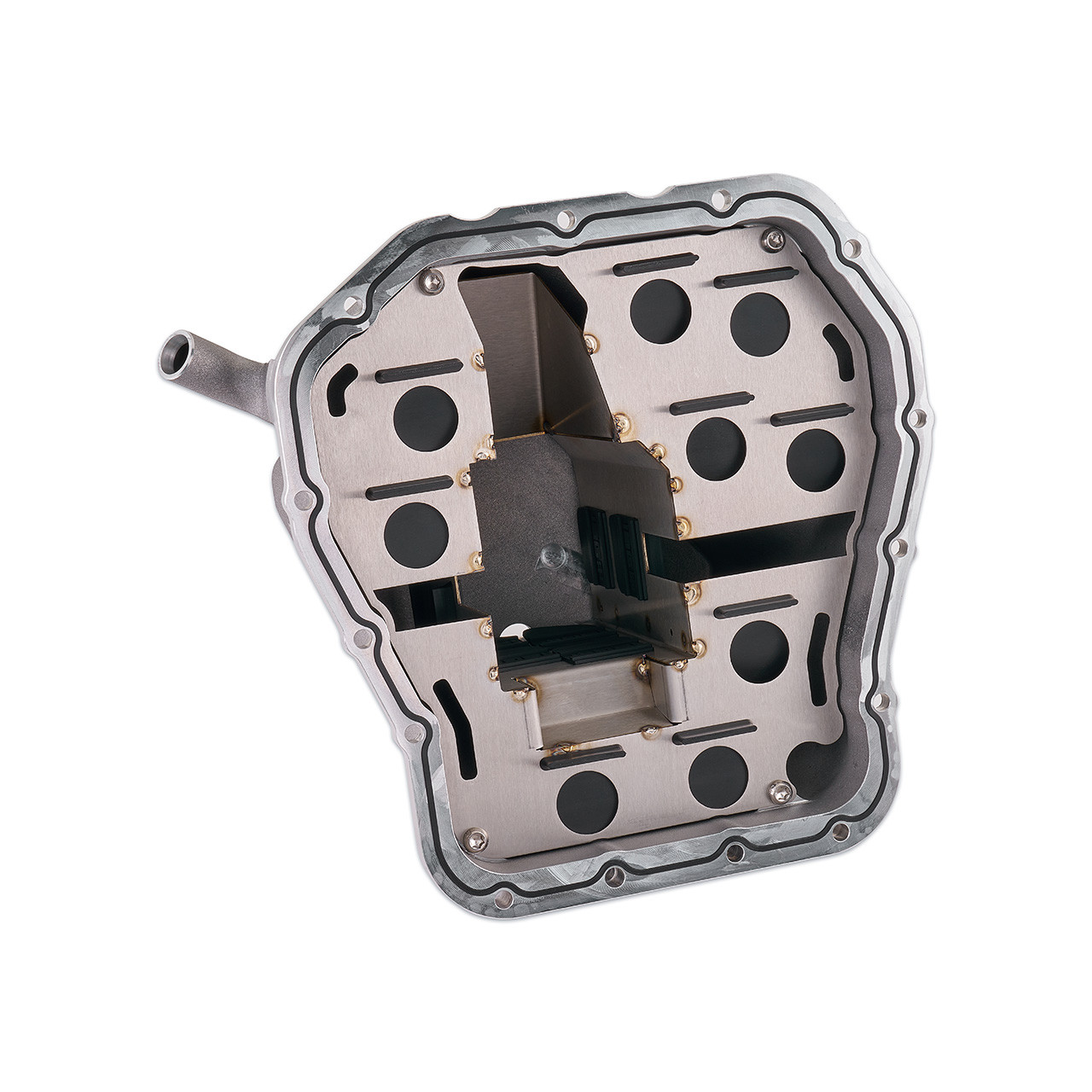

THE COMPETITION SERIES OIL BAFFLE
The IAG Competition Series Oil Baffle limits potential blow-by and prevents oil starvation in your Subaru’s engine when driving at high RPMs and high g-force driving. The Competition Series Baffle is recommended for vehicles that will be used on the track, but is suitable for street applications as well. Our Comp Series baffle features Viton one-way flapper valves that retain oil in the area nearest to the pickup. By combining the baffle with the louvers in our windage tray, oil is prevented from reentering the upper crankcase region and is instead directed into the oil pan, ensuring a continuous supply to the oil pickup.

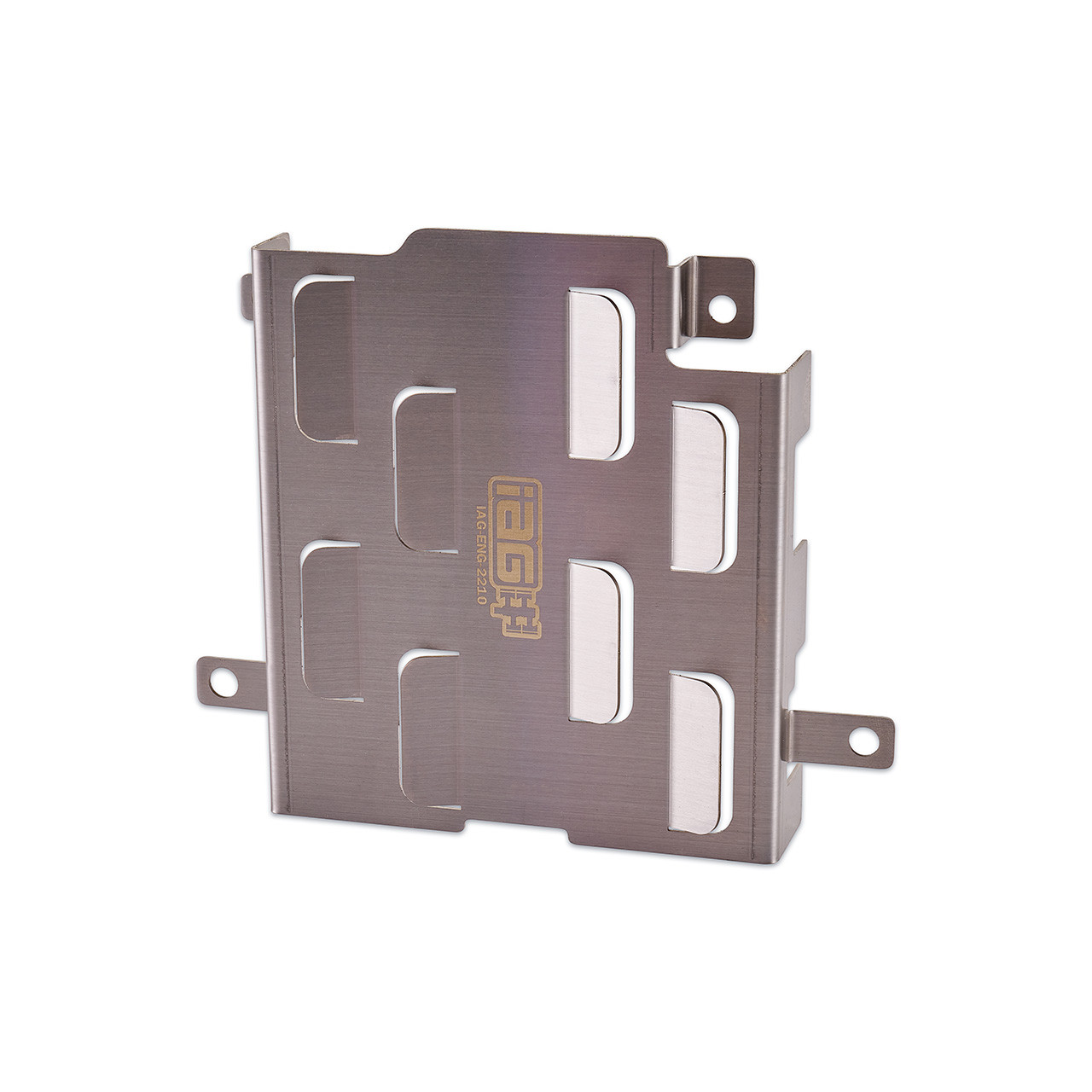

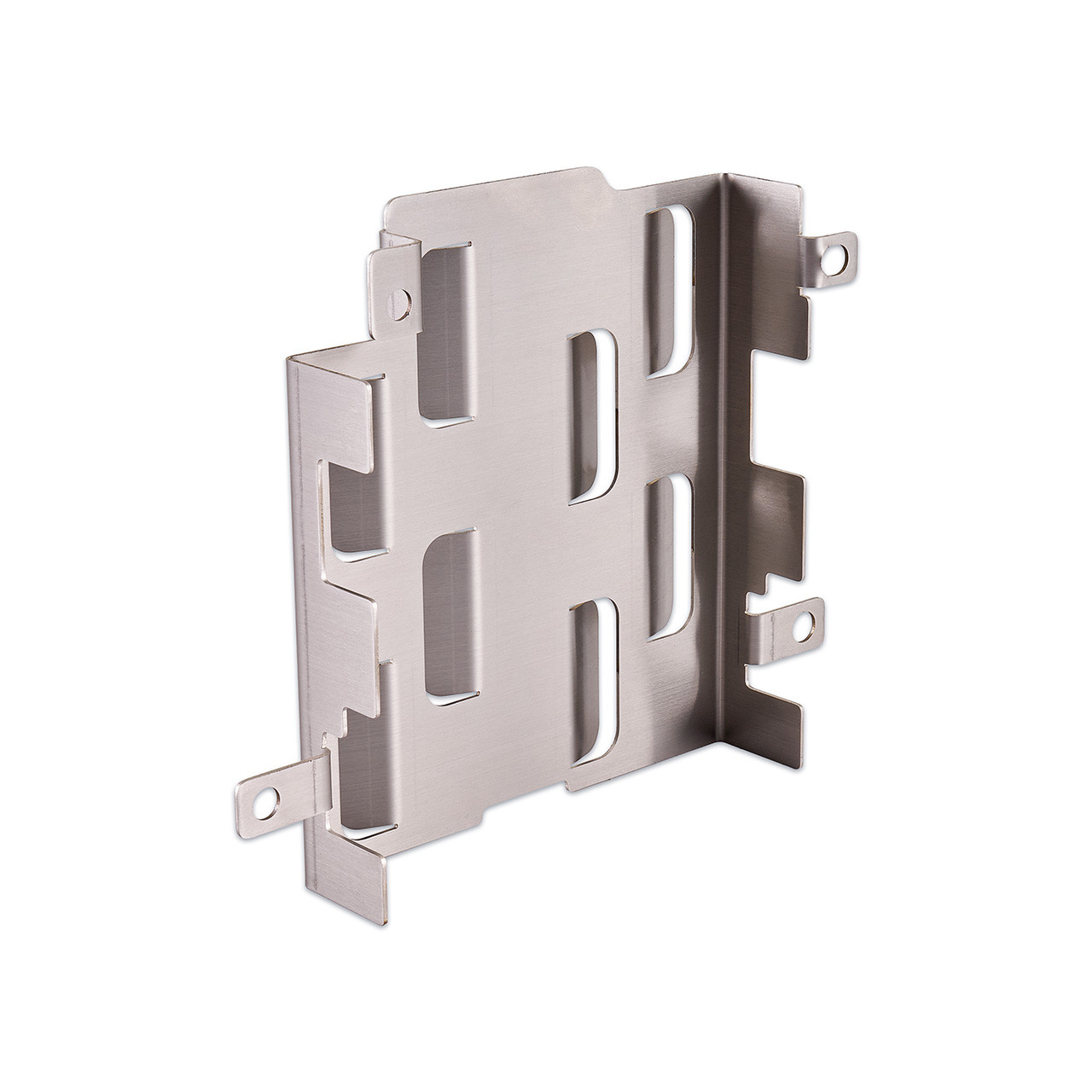

THE IAG WINDAGE TRAY
The IAG Windage Tray guides oil from the upper crankcase down into the lower crankcase and oil pan region. Made from stainless steel, its precisely formed louvers direct oil downward, preventing oil draining from the cylinder heads in the lower crankcase area from splashing upward into the path of the crankshaft and connecting rods, which reduces aeration.

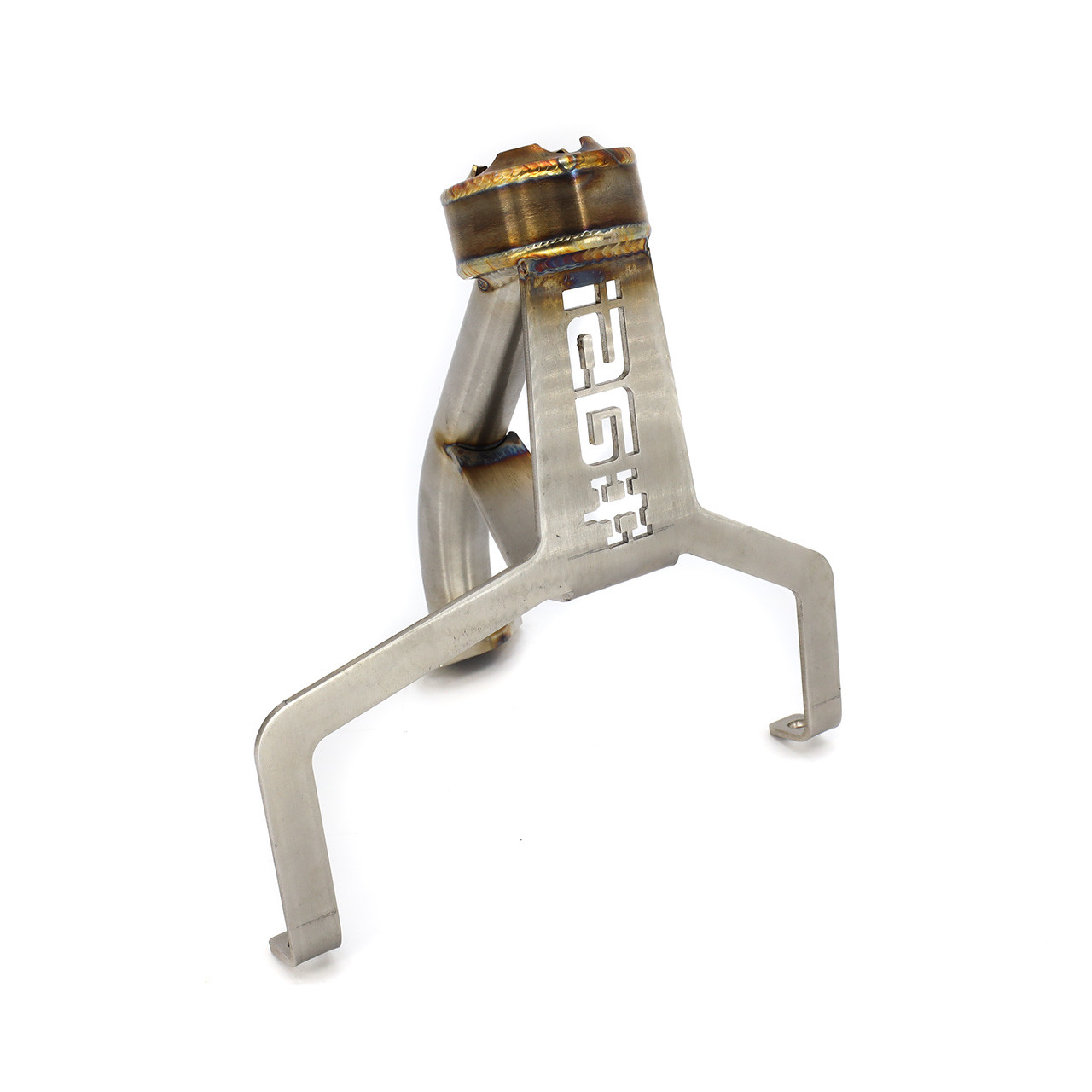

THE IAG V2 OIL PICKUP
The IAG V2 Oil Pickup is designed to replace the OEM EJ25 oil pickup, which is susceptible to failure. The OEM Subaru oil pickups are known to develop cracks and eventually fail, causing engine damage due to inadequate oil pressure. To address the issues of the OEM pickups, IAG has constructed the V2 pickup from heavy-gauge steel tubing that is twice as thick as the factory version. It also comes with a 3/8" stainless steel flange that has been precision-machined for an exact fit and sealed with a Viton O-ring. The integrated stainless steel mounting bracket uses two mounting points, compared to the single mounting point on the factory part. The increased thickness of the TIG-welded V2 Oil Pickup, along with the two-point heavy-duty mounting configuration safeguards against failure and fatigue.
What's Inside:
- Product Name: IAG EJ Competition Series Oil Pan Package (Silver Pan / Pickup / Comp Baffle / Windage Tray) For WRX, STI, LGT, FXT
- Part Numbers: IAG-ENG-2202SL
- Material: Cast And CNC Machined Aluminum
- Color: Silver

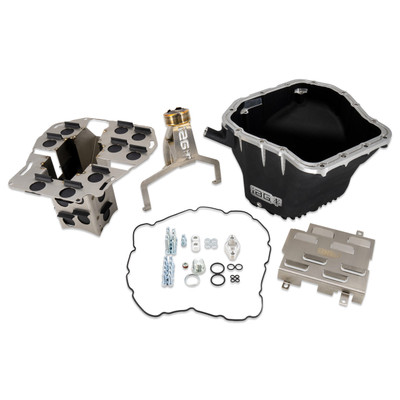

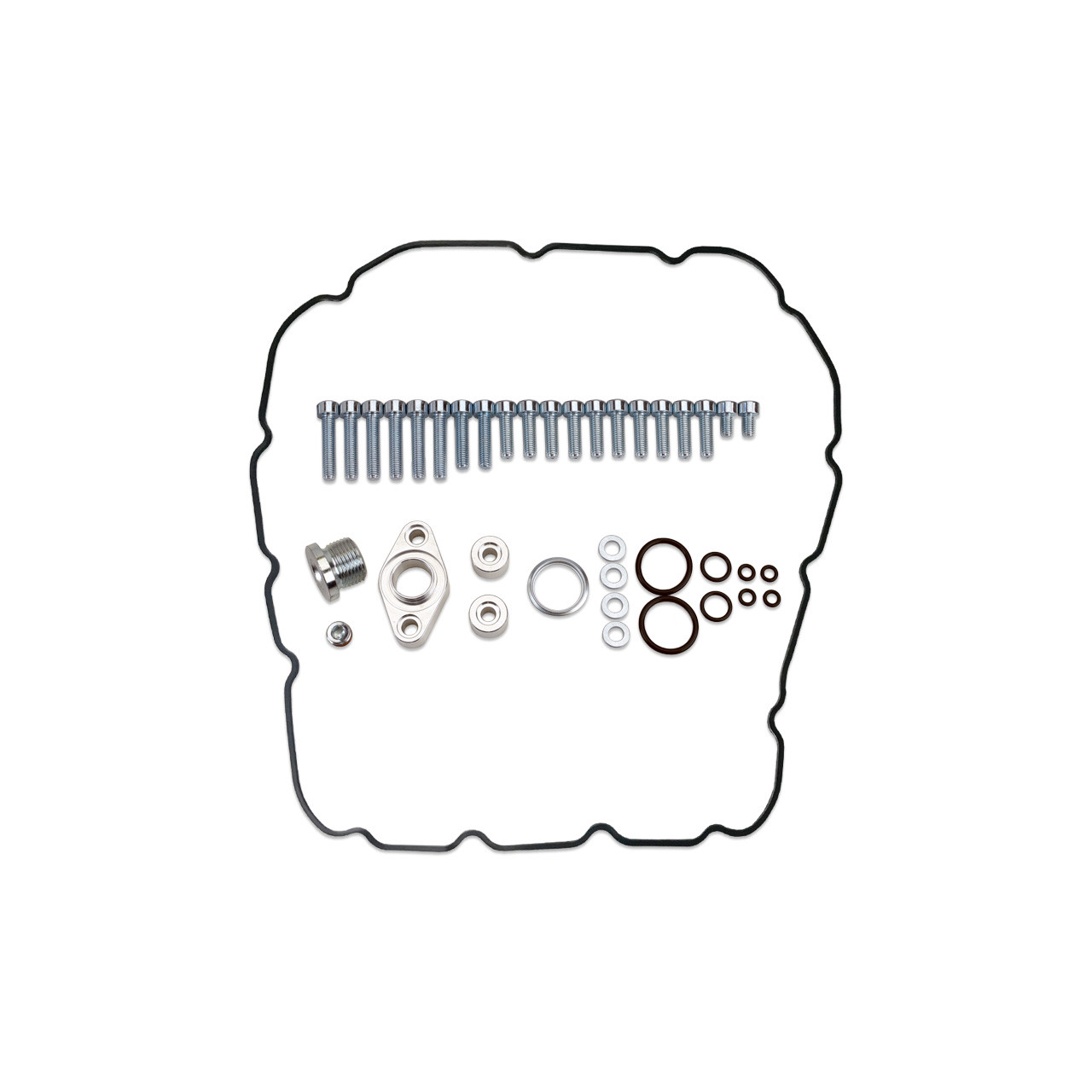

Package Includes:
- (x1) IAG Competition Series Oil Pan Baffle w/ Viton Valves
- (x1) IAG Windage Tray
- (x1) IAG V2 Oil Pickup
- (x1) Oil Pan Mounting Hardware Pack
- (x1) Oil Baffle Hardware Pack
- (x1) Oil Pickup Spacer Kit
- (x1) M20 Zinc Plated Oil Drain Plug & OEM Style Crush Washer/Gasket
- (x1) 1/8" NPT Zinc Plated Plug
- (x1) Oil Pan O-ring
- (x2) Oil Pan Dipstick Viton OEM Sized O-rings
- All necessary hardware required for install
- Fitment: 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT
Install Notes
- IAG oil pickup spacer is included and required when using the IAG oil pickup.
- Flaps should be inspected every 12-24 months depending on use.
- Subaru EJ25 dipstick (Part# 11140AA150) is required when using an IAG Oil Pan on the 02-05 WRX EJ20 engine.
Installation Instructions:
Model Year & Fitment
- 2002 Subaru WRX
- 2003 Subaru WRX
- 2004 Subaru WRX
- 2005 Subaru WRX
- 2006 Subaru WRX
- 2007 Subaru WRX
- 2008 Subaru WRX
- 2009 Subaru WRX
- 2010 Subaru WRX
- 2011 Subaru WRX
- 2012 Subaru WRX
- 2013 Subaru WRX
- 2014 Subaru WRX
- 2004 Subaru STI
- 2005 Subaru STI
- 2006 Subaru STI
- 2007 Subaru STI
- 2008 Subaru STI
- 2009 Subaru STI
- 2010 Subaru STI
- 2011 Subaru STI
- 2012 Subaru STI
- 2013 Subaru STI
- 2014 Subaru STI
- 2015 Subaru STI
- 2016 Subaru STI
- 2017 Subaru STI
- 2018 Subaru STI
- 2019 Subaru STI
- 2020 Subaru STI
- 2021 Subaru STI
- 2005 Subaru Legacy GT
- 2006 Subaru Legacy GT
- 2007 Subaru Legacy GT
- 2008 Subaru Legacy GT
- 2009 Subaru Legacy GT
- 2004 Subaru Forester XT
- 2005 Subaru Forester XT
- 2006 Subaru Forester XT
- 2007 Subaru Forester XT
- 2008 Subaru Forester XT
- 2009 Subaru Forester XT
- 2010 Subaru Forester XT
- 2011 Subaru Forester XT
- 2012 Subaru Forester XT
- 2013 Subaru Forester XT
SHIPPING
FREE SHIPPING on orders of $250 or more* Simply look for the logo to enjoy free shipping on selected items throughout the store. Oversized packages and freight shipments do not qualify for free shipping. If the items in your order which qualify for 'Free Shipping' total $250 or more, your order ships FREE! Free shipping is only available to the continental United States also referred to as the “lower 48 states”.Shipping Policy: All products sold on the shopping cart are shipped by UPS or USPS. All packages include shipping insurance in case they are lost or damaged. USPS requires signature confirmation on all insured orders over $200.00. USPS shipping times are estimated and not guaranteed. UPS tracking numbers are automatically generated when a package ships and the number is sent to the email address you provided. If a package contents is damaged during shipping please notify the shipping driver and file a claim with the shipper. You have 14 days to inspect your shipment and contents. After that period of time, IAG is no longer responsible for missing items. You have 30 days to report any damaged or incorrect items, after that period of time IAG is no longer responsible for returns or exchanges. You can contact us by Email or call 410-840-3555 for assistance. *International orders are subject to customs charges, duties or fees. Please check with your local customs office before ordering. IAG is not responsible for international customs charges, duties or brokerage fees.
Drop Shipping: Some items require drop shipping to complete an order. These products are shipped from manufacturer or distributor warehouses across the country. In some cases, this may speed up delivery time. In other cases, it could add 1-3 days to the delivery time. If you have a question regarding an order please contact our sales desk at 410-840-3555.
Order Processing: Orders placed after 3PM EST may not be processed the same day. Order processing may take 24-48 hours. USPS orders placed after 10am EST will ship the following business day if the items are in stock
RETURNS
How do I return an item?
You have 14 days to inspect your shipment and contents. After that period, IAG is no longer responsible for missing items. You have 30 days to report any damaged or incorrect items, after that period IAG is no longer responsible for returns or exchanges. All stocking products are subject to a 30 Day return policy. The item(s), when approved for return, are subject to a 20 percent restocking fee. Canceled orders may be subject to a 20 percent cancellation fee. All product returns require a return authorization number before being shipped back to IAG or the manufacturer. An “RMA” number is obtained by calling the IAG Support Desk at 410-840-3555 or emailing support@iagperformance.com. Some products may require shipping back to the manufacturer for inspection before a return or exchange may be processed. Some products may not be able to be returned. Products that have been modified or installed are not eligible for return. There are no returns or cancellations for Special Order/Made to Order items and Electrical Components (including the COBB Accessport). Items returned after the 30 Day return period without an RMA will be refused. Canceled service appointments with deposits are non-refundable.
Refunds take 30 days or less. Payments made by Credit Card or PayPal are returned back to the original account used during the transaction. There are no cash returns; we will issue a business check for the return of funds. Refunds are decided by the management and not by sales staff. Canceled service appointments with deposits are non-refundable.
IAG Performance Product Warranty (Excluding - Short Blocks / Long Blocks)
This limited warranty gives you specific legal rights and you may also have other rights, which vary from state to state. We limit the duration and remedies of all implied warranties, including, without limitation, the warranties of merchantability and fitness for a particular purpose to the duration of this express limited warranty. Some states do not allow limitations on how long an implied warranty lasts. The remedies described below are your sole and exclusive remedies and our entire liability for any breach of this limited warranty. Our liability shall under no circumstances exceed the actual amount paid by you for the product, nor shall we under any circumstances be liable for any consequential, incidental, special or punitive damages or losses, whether direct or indirect.
This warranty covers defects in materials and workmanship of your IAG Performance Product for 12 Months or 12,000 Miles from the date of receipt.
IAG will repair any IAG Manufactured Product that proves to be defective in materials or workmanship within the warranty period. If a repair is not possible, we will either replace your Product with a new Product of similar composition and price, or refund the full purchase price of your Product, at our sole discretion. There is no charge for inspection but the buyer is responsible for shipping charges.
IAG Performance Engine Warranty
For more information concerning our engine warranty please visit IAG Performance Engine Warranty Page
Other Manufacturer Products:
Products not manufactured by IAG are subject to the individual manufacturer warranties which may apply. If you have questions concerning the fitment, appearance, or performance of your item, please contact a member of our customer support team for assistance.
Our customer service team is happy to assist you with the products purchased from IAG Performance. Our support associates can help you with installation support, troubleshooting advice, and help to identify possible manufacturer defects.
For products that are found to have defects, our support department can provide the contact information for the manufacturer to arrange a warranty inspection and, if applicable, any necessary repairs or replacement shipments.
You may also contact the manufacturer directly for information regarding product eligibility and specific terms and conditions of warranty coverage.
Related Products
IAG Performance
IAG EJ Competition Series Oil Pan Package (Black Pan / Pickup / Comp Baffle / Windage Tray) For WRX, STI, LGT, FXT
Availability: Usually Ships in 24 to 72 Hours
IAG Performance

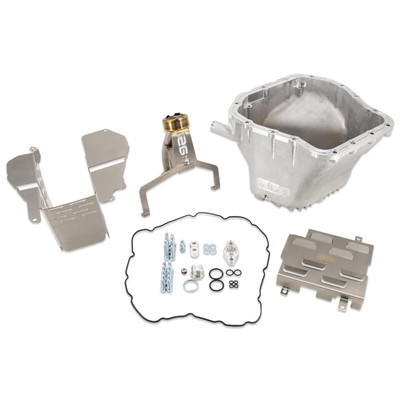

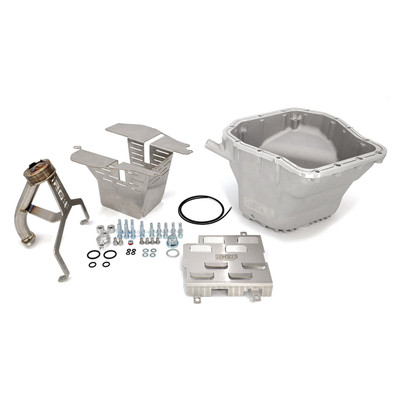

IAG EJ Street Series Oil Pan Package (Silver Pan / Pickup / Street Baffle / Windage Tray) For WRX, STI, LGT, FXT
