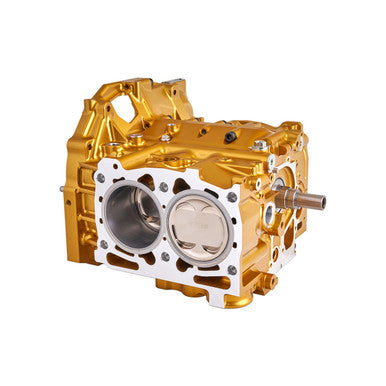

IAG Performance / Crest CNC Stage X 2.5L Subaru Billet Aluminum Short Block For WRX, STI, LGT, FXT

Power:The IAG / Crest CNC Stage X Short Block has a power output rating of 1150+BHP.

Not planning on reusing your original short block service plugs and covers? IAG offers a simple comprehensive cover and seal kit that includes (1) Rear main seal, (3) OEM wrist pin plugs, (3) OEM wrist pin plug washers, (1) OEM separator cover, (6) OEM separator cover bolts, (1) OEM wrist pin service cover, (1) OEM wrist pin service cover O-ring and (2) OEM wrist pin service cover screws. *If you are reusing your original wrist pin service plugs and covers, always replace the (3) OEM wrist pin plug washers and (1) wrist pin service cover O-ring before installing a short block to avoid potential leaks. *Never reuse a rear main seal on a new short block.

After years of research and development testing, the IAG Performance Fire-Lock™ head gasket is the newest solution to preventing head gasket failure on high horsepower and high boost Subaru EJ25 engines. This solution is loosely derived from diesel technology where a counterbore step is machined around each cylinder bore allowing specially sized fire rings to drop into the machined area and head gasket bores. The shims are designed to create a compression seal once the heads are installed and torqued into place. IAG fire rings are manufactured to a very strict tolerance from a proprietary alloy and are then put through a heat treatment process. The gaskets are manufactured from an asbestos-free composite raw material and feature a silicone based beading applied to critical areas to improve sealing around all water and oil passages. The combination of the alloy compression shims and gaskets assure maximum sealing for a Subaru EJ25 turbocharged engine.
*The IAG Fire-Lock™ gaskets require machine work for installation and are recommended for use with 14mm head stud hardware.

*The gaskets are sold in pairs with four Fire-Lock™ rings.
Features:

• Composite Material
• IAG-Spec Alloy Ring
• Specifically designed for 14mm Head Studs
• Silicone Beading
• 100mm Bore
• .051" Thickness
• Intended for High Horsepower, High Boost applications
• IAG ARP 14mm Head Studs Required
• Gaskets sold in pairs

Install Notes:
1. If a block or cylinder head was previously o-ringed the groove must be filled and resurfaced before using this type of gasket.
2. These gaskets require IAG ARP 14mm head studs to achieve the required torque necessary for proper installation.
3. Due to the required torque, any block that was previously honed will need to go to the next size overbore.
4. Future servicing will require cylinder head resurfacing due to an imprint left from the Fire-Lock™ rings.

The IAG Performance Subaru WRX / STI oil pickup was designed by Tigwerks to replace the OEM EJ25 oil pickup, which is prone to failure. It's a well-known fact that the OEM oil pickups often crack and fail which, in most cases, destroys your engine from lack of oil pressure. To avoid the cracking failures seen in the OEM oil pickup tubes, the Tigwerks oil pickup is manufactured from heavy-gauge steel tubing that is 3x thicker than OEM. Additionally, it features a flange machined from 3/8" 1018 CR steel to mate with the block, sealed with a Viton O-ring. The integrated heavy-duty mounting bracket uses two mounting points rather than the OEM single mounting point. Furthermore, the oil pickup features a formed bottom with an OEM style mesh screen for proper filtration. The TIG-welded oil pickup's increased material thickness, matched with the two-point heavy-duty mounting bracket, helps ensure that it does not fatigue and fail over time like an OEM unit.

The IAG Oil Control Baffle and Windage Tray System is designed to limit potential blow-by and prevent oil starvation in your Subaru's WRX / STI EJ engine during high rpm and high g-force driving. Through the use of Viton one-way flapper valves on our baffle and louvers in our windage tray, oil is prevented from reentering the upper crankcase area and is directed down into the oil pan to ensure plentiful supply to the oil pickup. IAG's integrated two-piece Oil Control Baffle and Windage Tray System is designed to work with our own oil pickup, as well as other oil pickups*. The baffle fits neatly in the engine crankcase area, allowing normal installation of the OEM oil pan and popular aftermarket pans*.

Oil Pickup & Baffle Install Notes

• EJ20 Subaru WRX engines require EJ25 oil pans for fitment
• IAG oil pickup spacer (Part# IAG-ENG-2081SP) is required when using IAG oil pickup with Killer B Oil Pan.
• *Does not work with Moroso oil pans or pickups

The 11mm Subaru Oil pump is one of the most popular off the shelf pumps to use on EJ25 engines. Originally equipped on the 2008-21 STI Dual AVCS engines, it provides an adequate amount of pressure and flow that fits the needs of many OE and built engines. But, as with almost anything, there is room for improvement.

Increasing oil flow volume and pressure in an EJ25 ensures that the bearings have sufficient oil film under all power levels and driving conditions. Additional oil flow to the engine provides a greater oil reserve to operate the AVCS solenoids and cam gears - giving you more consistent performance results.

The IAG Stage 2 CNC Ported 11mm oil pump was developed over years of servicing street and racing engines. In that time IAG has tested and utilized the majority of the popular Subaru oil pumps available on the market (JDM, Cosworth, ACL etc.) for customer, personal and racing vehicles.

Over the last few years if you wanted an upgraded oil pump over the stock 11mm you would either buy a hand ported model from a trusted source, or often an OEM JDM (Japanese Market) 12mm pump. We believe that we have developed a better alternative. The IAG Stage 2 CNC Ported 11mm oil pumps have shown through lab testing on a Spintron Machine that it will outperform a JDM 12mm.

• Stage 2 flows 11.1% more oil than the OEM 11mm Oil Pump
• Stage 2 flows 9% more oil than the OEM 12mm Oil Pump

• Stage 2 oil pressure is 12.4% higher than the OEM 11mm Oil Pump
• Stage 2 oil pressure is 9.8% higher than the OEM 12mm Oil Pump

The Stage 2 Oil pump is a cost effective solution that outperforms the market standards. This pump has been extensively tested on street cars, track cars, and on our in-house Spintron to ensure consistent and repeatable performance.

Each IAG Stage 2 oil pump starts life as an OEM spec 11mm oil pump, straight from Subaru. IAG completely disassembles the new oil pump including pulling the rotors, backing plate & pressure relief valve. Next, the main body is fixtured in our in-house 5-Axis Centroid CNC machine where the inlet and outlet passageways are CNC ported. This allows for a larger, more consistent pathway for the oil into and out of the gerotor internals and helps to prevent cavitation. The Oil Pump Outlet where it meets the engine block is also CNC “Port Matched”, for a perfect transition into the engine block. The Inlet and Outlet sides of the gerotor are also opened up on the CNC mill to reduce inlet side cavitation, and to reduce outlet side pressure drops.

The pressure relief valve piston is REM Polished, which provides a non-directional, low Ra, polished finish. This reduces friction, heat and possibility of the relief valve piston galling and sticking, a common failure point on the OEM pumps.

The piston is reinstalled and confirmed to operate correctly. The rotors are measured and checked to be within the manufacturer's specification - aka Blueprinted, and installed next. The pump is then put together with a light coating of assembly lube to reduce friction and scuffing and aid in priming on first start up.

Finally, the backing plate is installed. Loctite is added to the hardware, and each piece receives a painted mark after it is correctly torqued. The pump ships ready to install, with all hardware and seals required for installation.

Please review the PDF document below regarding installation, break-in procedures and warranty information.

PDF Closed Deck Install Guide for 1/2" & 14mm Head Studs

PDF After Sale Document - Contains Shipping, Engine Care and Warranty Information
