IAG Performance EJ Competition Series Oil Pan For 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT (Black)
Have questions?
-
Guaranteed Quality
Best Parts Every Time
-
Expert Help
Build Advisors Are Standing By
-
Secure Shopping
SSL Verified
-
Worldwide Delivery
Free shipping on most orders over $249 in US 48
IAG Performance
IAG Performance EJ Competition Series Oil Pan For 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT (Black)
- SKU:
- IAG-ENG-2203BK
- UPC:
- 887753778642
- Availability:
- Usually Ships in 24 to 72 Hours
- Proposition 65:
P65 WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov.- fbt-product:
- 32450
IAG Performance EJ Competition Series Oil Pan For 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT (Black)
IAG PERFORMANCE EJ COMPETITION SERIES OIL PAN FOR 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT (BLACK)

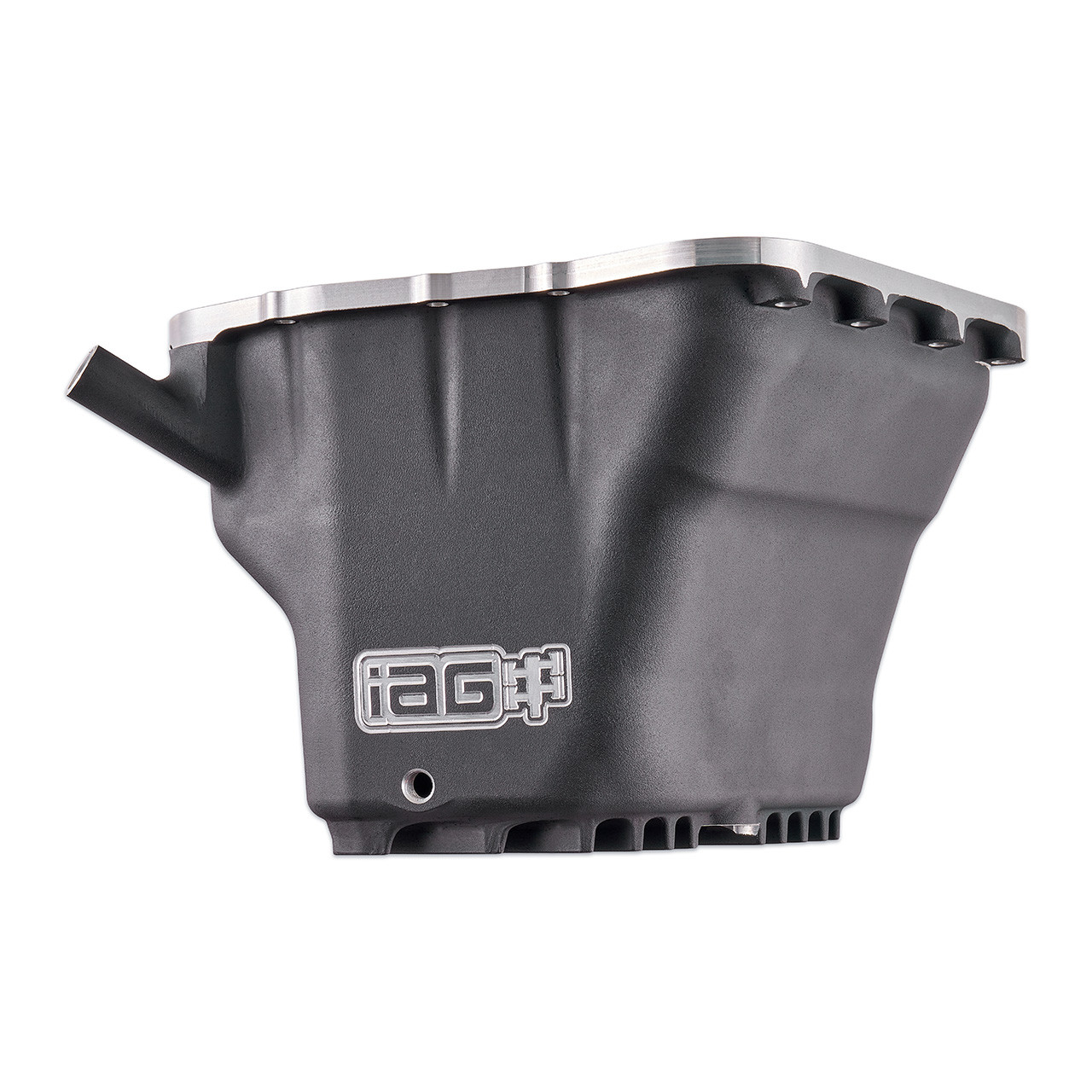

INCREASED OIL CAPACITY
The IAG Performance EJ Competition Series Oil Pan for Subaru WRX, STI, Legacy GT or Forester XT is uniquely designed and CNC-machined for versatile performance on both the street and track. The Comp Series Oil Pan is constructed from heavy-duty cast aluminum and was designed to work with a variety of popular headers. This pan offers a significant boost up to 30% in oil capacity over the OEM version.

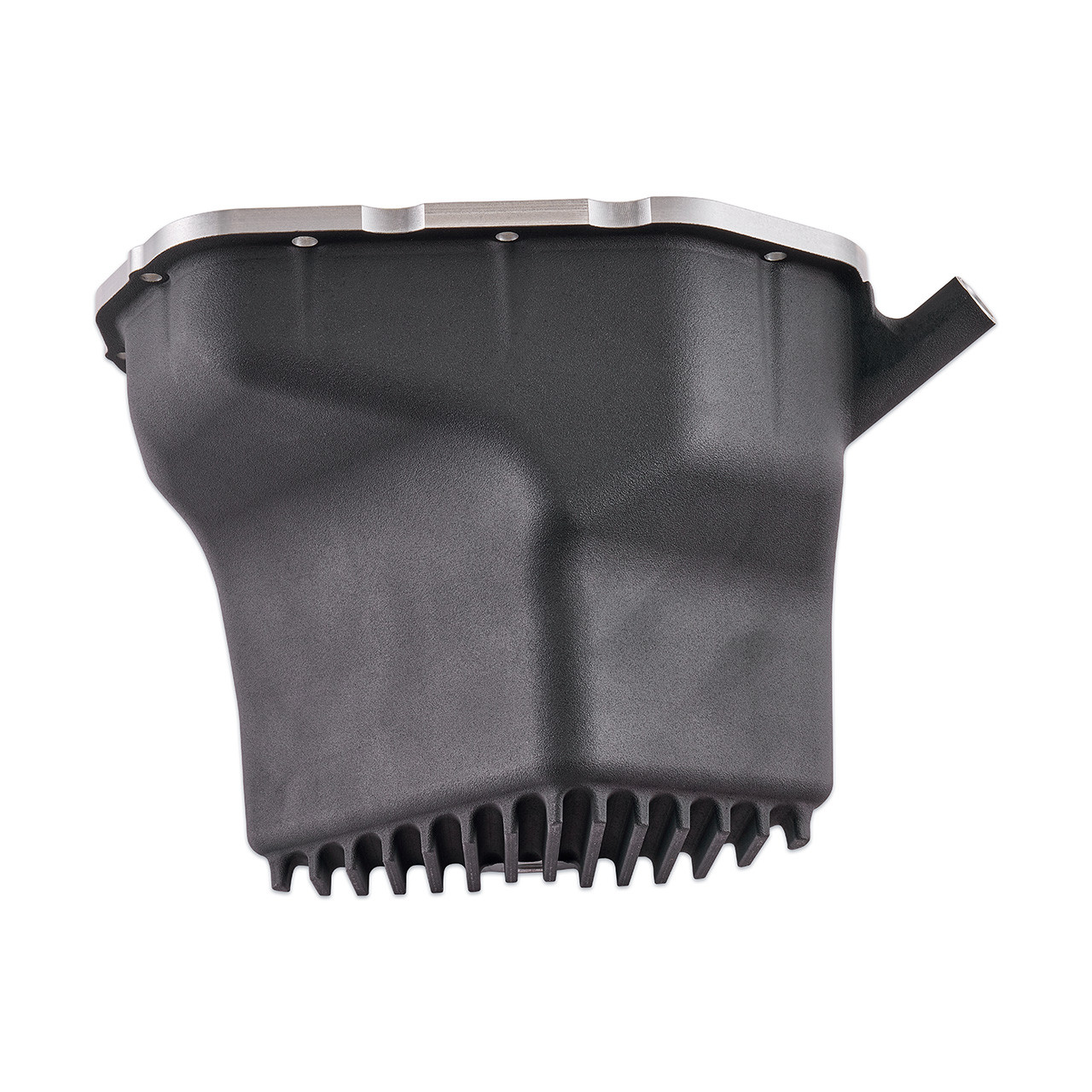

LOWER OIL TEMPS & BOTTOM FACING DRAIN PLUG
The IAG Performance EJ Competition Series Oil Pan has external fins to help cool the oil as air passes over them. The location of the included oil drain plug is at the very bottom of the pan, allowing for easy access and to ensure that all used oil is completely removed during services. The Competition Oil Pan has a 1/8th inch NPT port that is compatible with many popular oil temperature sensors. In the event that the sensor port is not used, we also include a 1/8th inch NPT plug.
INNOVATIVE DESIGN
The IAG Performance EJ Competition Series Oil Pan integrates a range of meticulously planned design aspects. The drain plug uses a standard crush washer, so you don't have to search for unusual sizes. The mounting surface for the upper flange is CNC machined to provide better hardware fitment. The pan comes with a molded o-ring to seal the flange and there is no need to apply silicone during installation. The pan is designed to use the included OEM style Viton dipstick o-rings with a unique chamfer to aid in the installation of the dipstick and to prevent leaks.

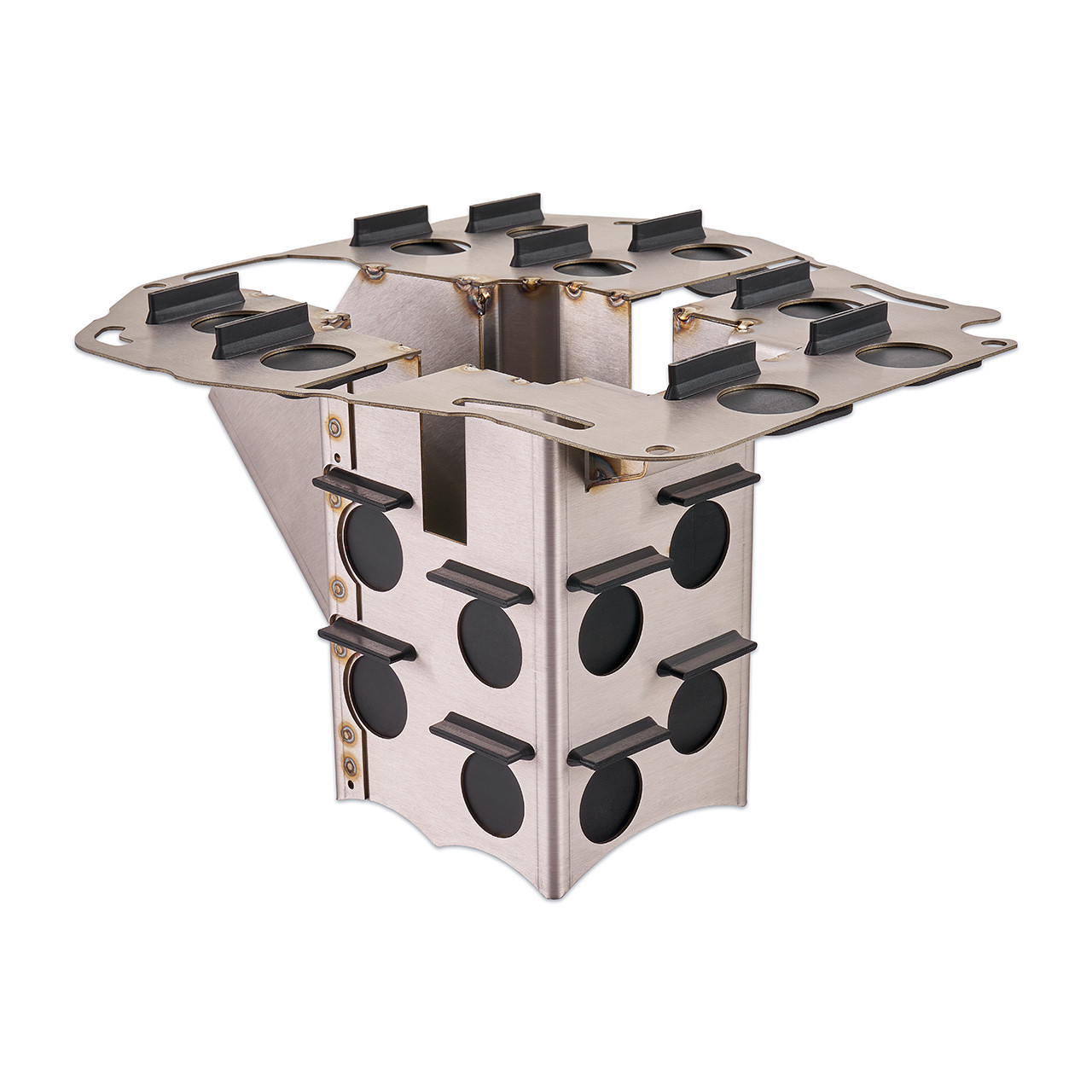

INTEGRATED OIL BAFFLE
The IAG Competition Series Oil Baffle is engineered to minimize blow-by and to safeguard against oil starvation in your Subaru’s engine when subjected to high RPM and G-force driving conditions. The Competition Series Baffle is recommended for vehicles intended for track use, although it is also suitable for street driving. The Comp Series baffle is designed with Viton one-way flapper valves that retain oil in the area closest to the pickup. The combination of our baffle, along with the louvers in our optional windage tray, oil is prevented from re-entering the upper crankcase area and is guided downward into the oil pan to ensure a continuous supply to the oil pickup. IAG's integrated oil baffle is designed to work with the IAG V2 oil pickup as well as other popular oil pickups.
THERMAL DISPERSANT COATING
The IAG Performance EJ Competition Series Oil Pan is equipped with a thermal dispersant coating that allows the pan to transfer heat from the metal surface to the surrounding air, surpassing the cooling efficiency of bare metal alone. Our thermal dispersant coating not only gives your oil pan a clean black finish but also maintains lower oil temperatures and extends the lifespan of your oil pan by shielding it from extreme temperature fluctuations.
COMPATIBILITY
IAG Performance’s EJ Competition Series Oil Pan is designed to work with the IAG and Killer B oil pickup. It is also compatible with the PN# IAG-ENG-2087 Oil Control Baffle and Windage Tray, or our PN# IAG-ENG-2210 Windage Tray. If you are wanting something more specific to racing applications, we also offer a Competition Series Oil Pan.
What's Inside:
- Product Name: IAG Performance EJ Competition Series Oil Pan For 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT (Black)
- Part Numbers: IAG-ENG-2203BK
- Material: Cast And CNC Machined Aluminum
- Color: Black

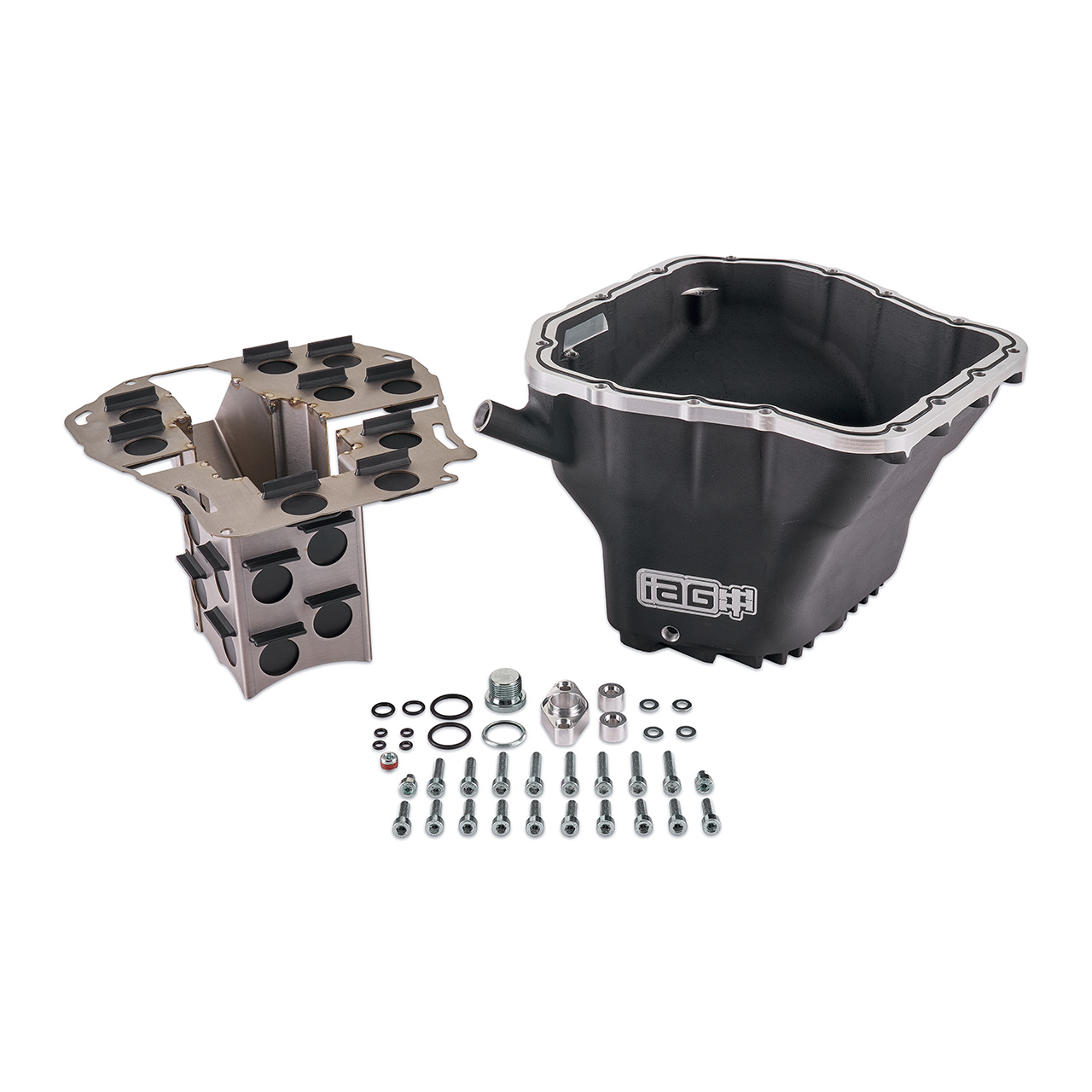

Package Includes:
- (x1) IAG Cast Aluminum Oil Pan with Machined Flanges, Cooling Fins & Black Finish
- (x1) IAG Competition Series Oil Pan Baffle
- (x1) Oil Pan Mounting Hardware Pack
- (x1) Oil Baffle Hardware Pack
- (x1) Oil Pickup Spacer Kit PN#IAG-ENG-2081SP
- (x1) M20 Zinc Plated Oil Drain Plug & OEM Style Crush Washer/Gasket
- (x1) 1/8" NPT Zinc Plated Plug
- (x1) Oil Pan O-ring
- (x1) Oil Pan O-ring
- (x2) Oil Pan Dipstick Viton OEM Sized O-rings
- All necessary hardware required for install
- Fitment: 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT
Install Notes:
- IAG oil pickup spacer (Part# IAG-ENG-2081SP) is included and required when using the IAG oil pickup or Killer B oil pickup.
- Flaps should be inspected every 12-24 months depending on use.
- Subaru EJ25 dipstick (Part# 11140AA150) is required when using an IAG Oil Pan on the 02-05 WRX EJ20 engine.
- The pan is designed to work with the IAG and Killer B Oil Pickup.
- Does NOT work with the Moroso or OEM Oil Pickup
Installation Instructions:
Model Year & Fitment
- 2002 Subaru WRX
- 2003 Subaru WRX
- 2004 Subaru WRX
- 2005 Subaru WRX
- 2006 Subaru WRX
- 2007 Subaru WRX
- 2008 Subaru WRX
- 2009 Subaru WRX
- 2010 Subaru WRX
- 2011 Subaru WRX
- 2012 Subaru WRX
- 2013 Subaru WRX
- 2014 Subaru WRX
- 2004 Subaru STI
- 2005 Subaru STI
- 2006 Subaru STI
- 2007 Subaru STI
- 2008 Subaru STI
- 2009 Subaru STI
- 2010 Subaru STI
- 2011 Subaru STI
- 2012 Subaru STI
- 2013 Subaru STI
- 2014 Subaru STI
- 2015 Subaru STI
- 2016 Subaru STI
- 2017 Subaru STI
- 2018 Subaru STI
- 2019 Subaru STI
- 2020 Subaru STI
- 2021 Subaru STI
- 2005 Subaru Legacy GT
- 2006 Subaru Legacy GT
- 2007 Subaru Legacy GT
- 2008 Subaru Legacy GT
- 2009 Subaru Legacy GT
- 2004 Subaru Forester XT
- 2005 Subaru Forester XT
- 2006 Subaru Forester XT
- 2007 Subaru Forester XT
- 2008 Subaru Forester XT
- 2009 Subaru Forester XT
- 2010 Subaru Forester XT
- 2011 Subaru Forester XT
- 2012 Subaru Forester XT
- 2013 Subaru Forester XT
