IAG Performance EJ Competition Series Oil Pan For 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT (Silver)
Have questions?
-
Guaranteed Quality
Best Parts Every Time
-
Expert Help
Build Advisors Are Standing By
-
Secure Shopping
SSL Verified
-
Worldwide Delivery
Free shipping on most orders over $249 in US 48
IAG Performance
IAG Performance EJ Competition Series Oil Pan For 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT (Silver)
- SKU:
- IAG-ENG-2203SL
- UPC:
- 887753779014
- Availability:
- Usually Ships in 24 to 72 Hours
- Proposition 65:
- P65 WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov.
- fbt-product:
- 32450
IAG Performance EJ Competition Series Oil Pan For 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT (Silver)
IAG PERFORMANCE EJ COMPETITION SERIES OIL PAN FOR 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT (SILVER)
GREATER OIL CAPACITY

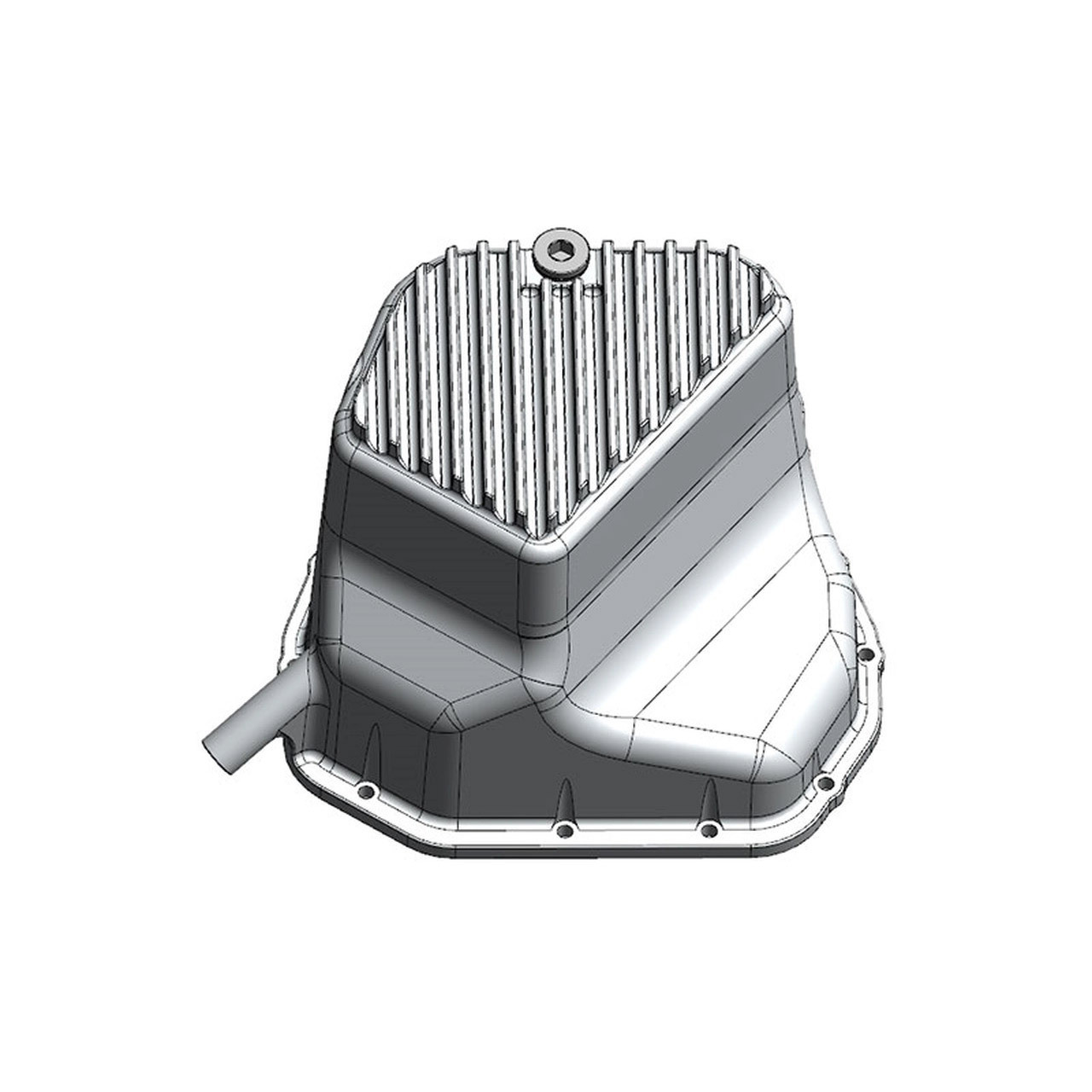

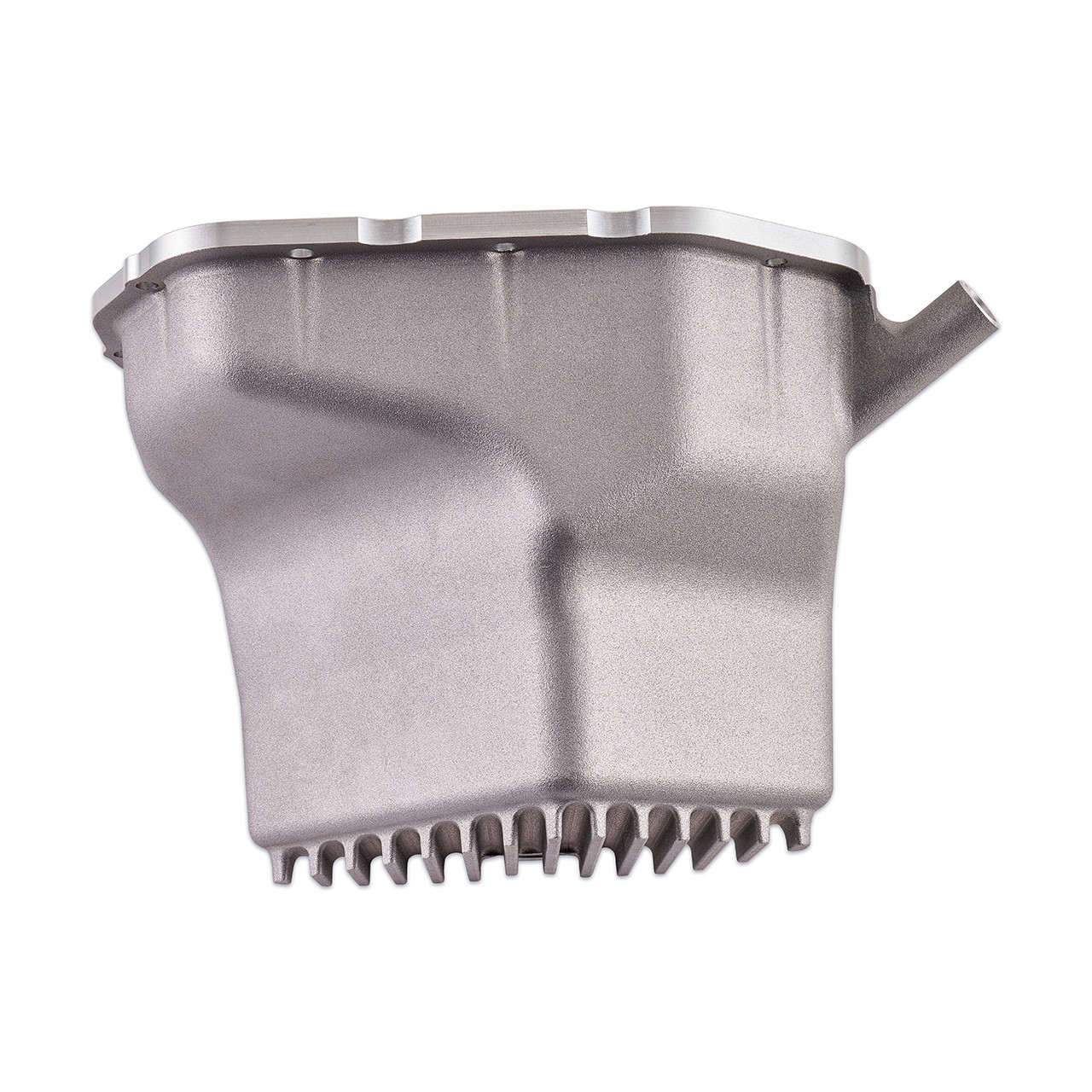

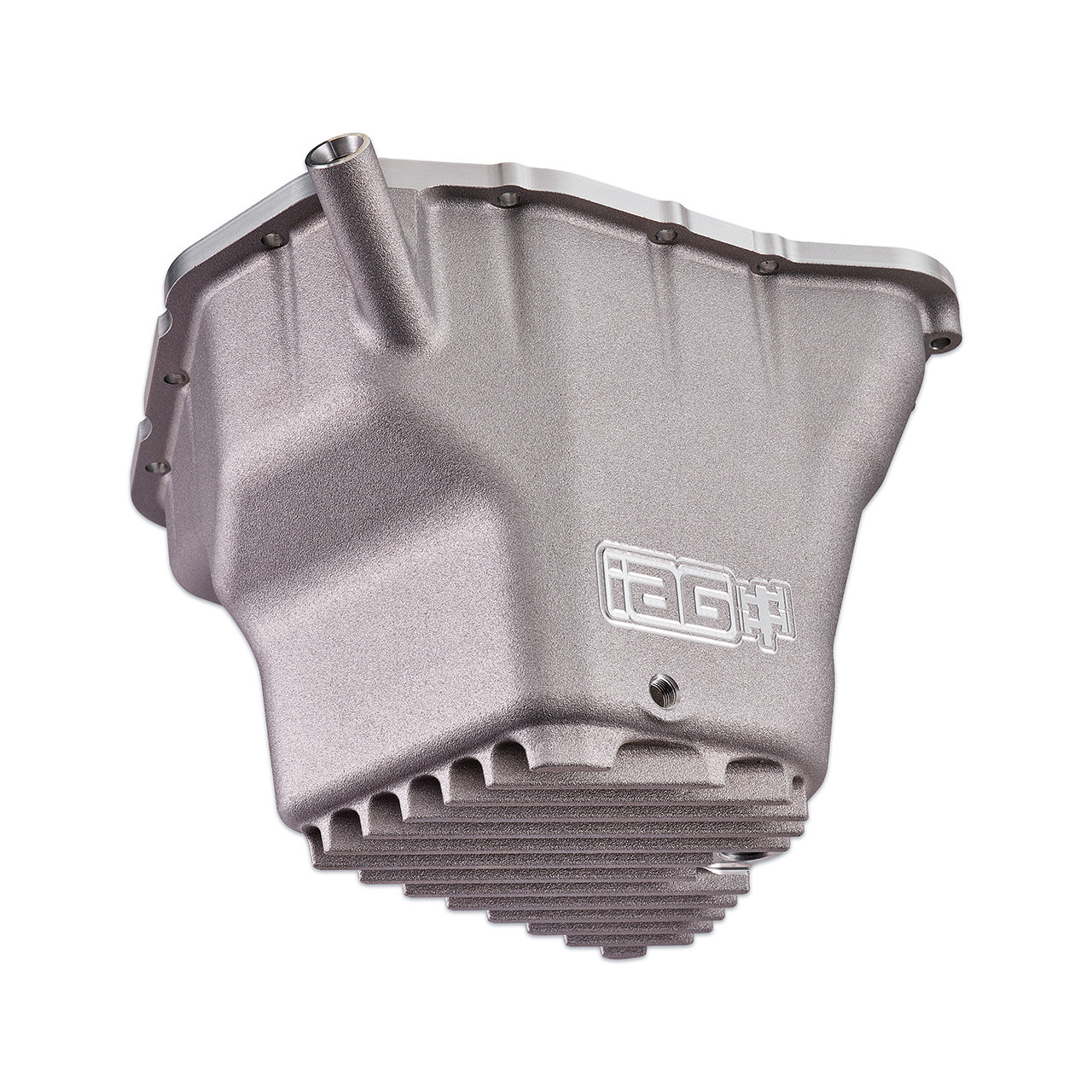

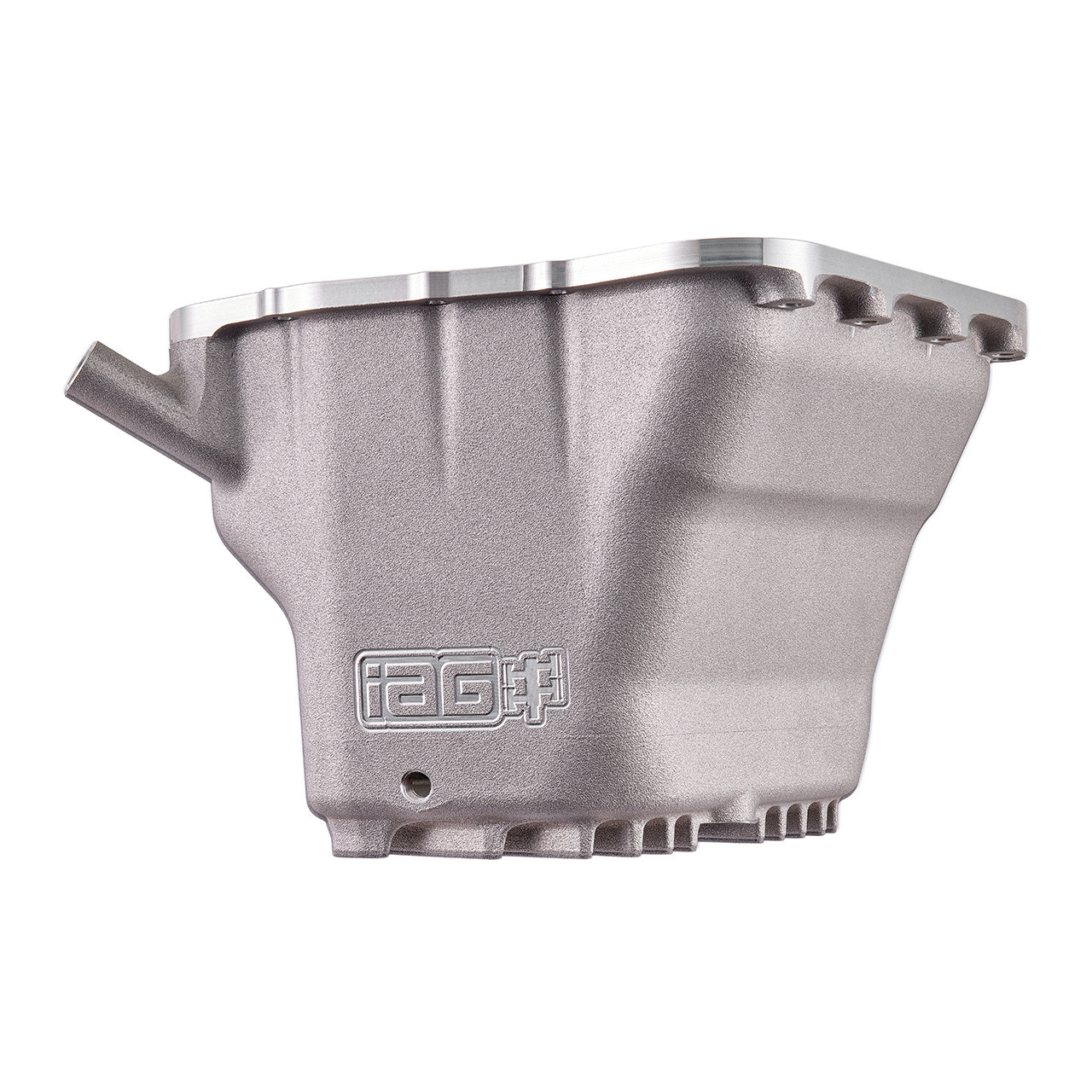

The IAG Performance EJ Competition Series Oil Pan features precision CNC machining and an advanced design for superior performance on both the street and the track. The Competition Series Oil Pan is manufactured from durable cast aluminum and is compatible with a variety of popular headers. This pan was developed specifically for the Subaru WRX, STI, Legacy GT or Forester XT and it provides a notable increase in oil capacity, up to 30% more than the OEM version.
LOWER OIL TEMPS & BOTTOM FACING DRAIN PLUG

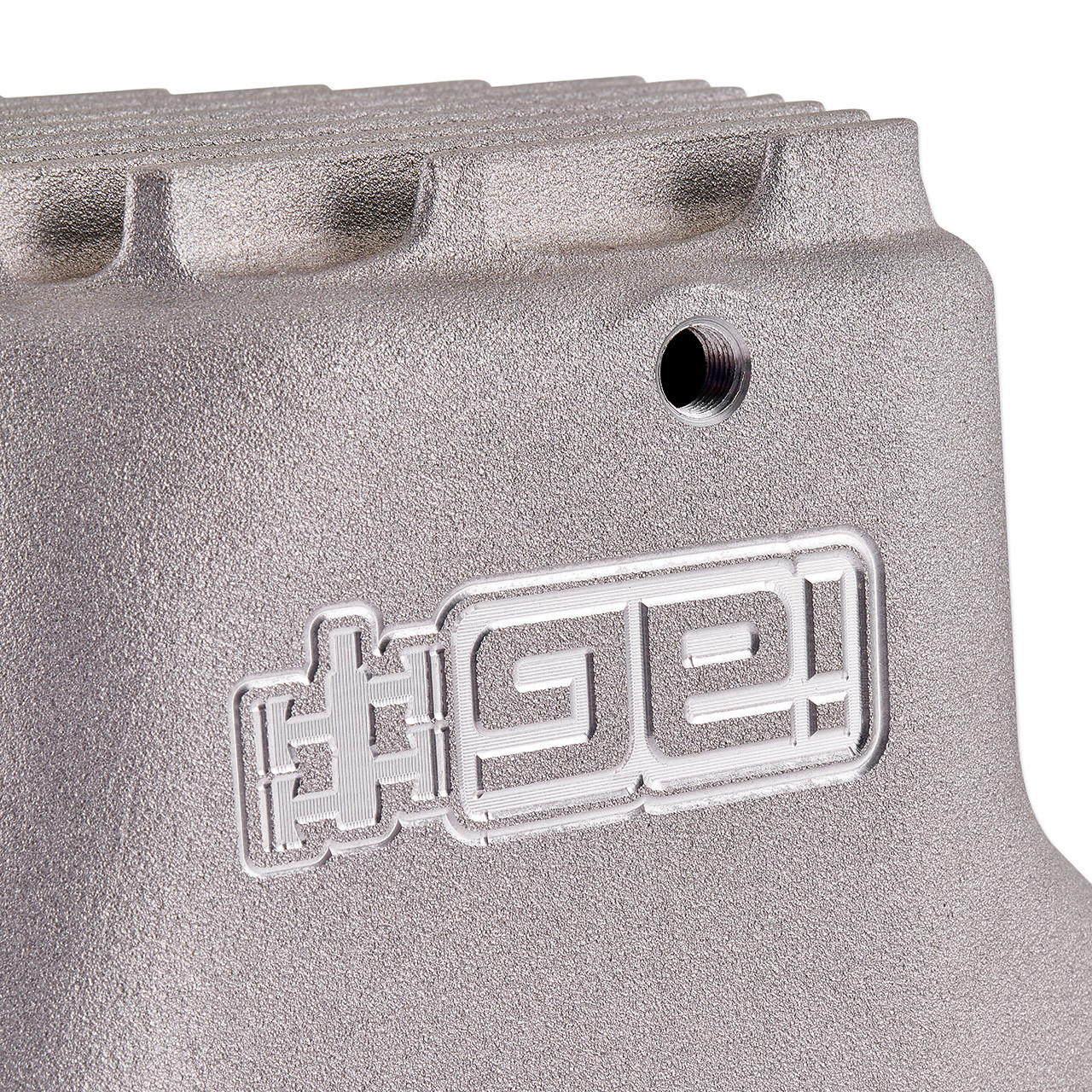

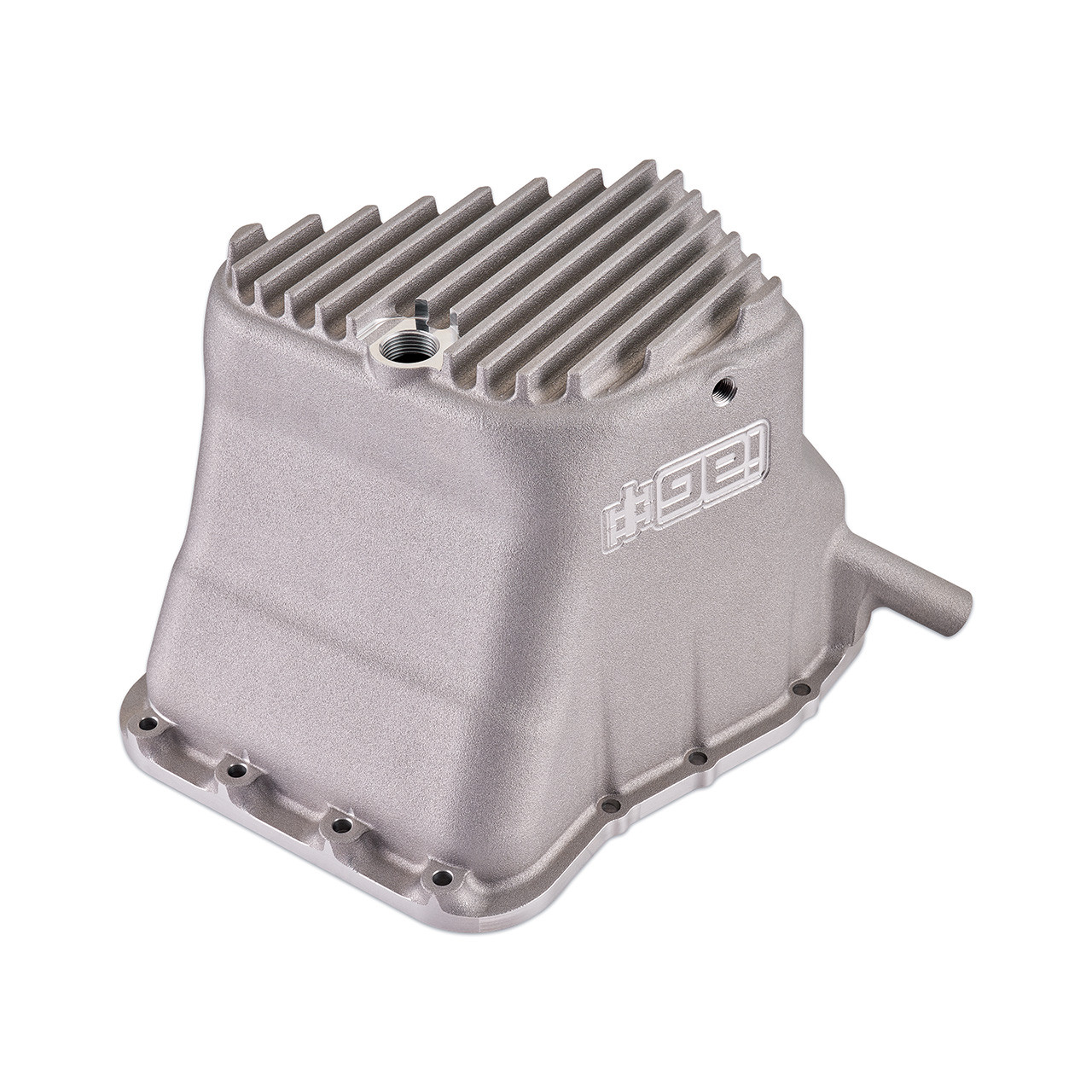

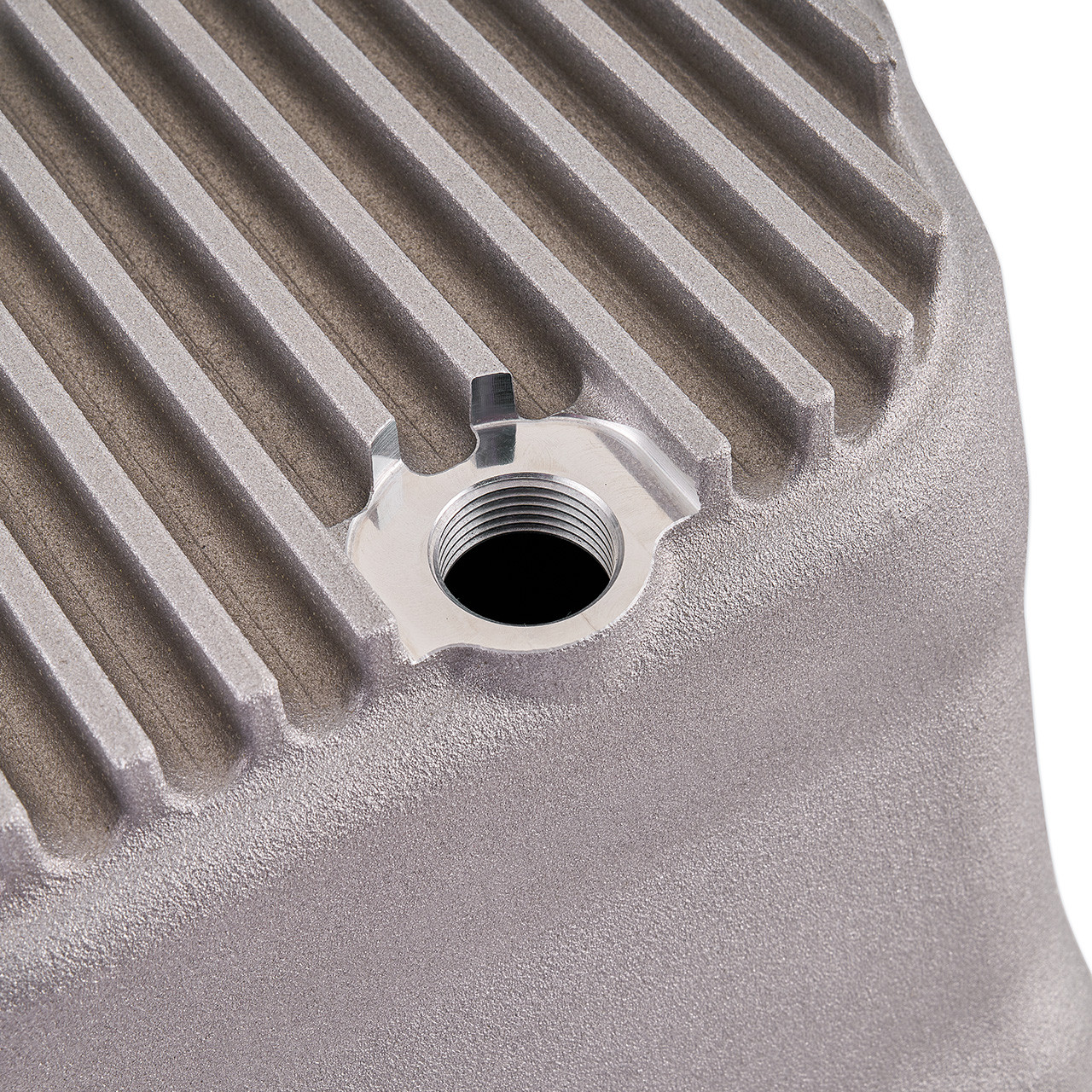

The IAG Performance EJ Competition Series Oil Pan features external fins that aid in cooling the oil when air flows across them. The included oil drain plug is positioned at the pan's lowest point, providing convenient access and ensuring thorough removal of all used oil during maintenance. The Competition Oil Pan features a 1/8th inch NPT port that can accommodate various commonly used oil temperature sensors. If you choose not to use the sensor port, we also provide a 1/8th inch NPT plug as part of the package.
ADVANCED DESIGN

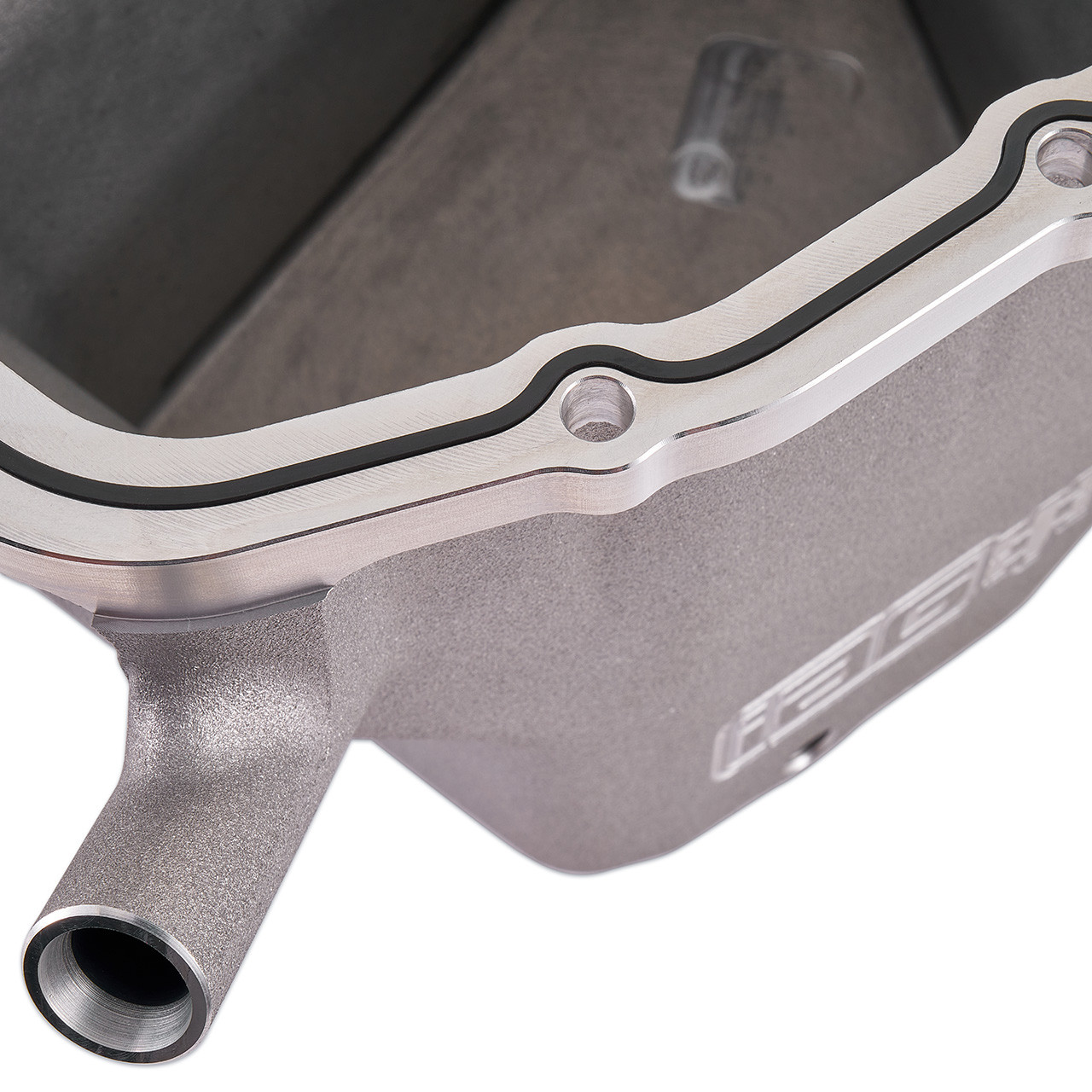

The IAG Performance EJ Competition Series Oil Pan incorporates a variety of carefully thought-out design elements. The drain plug uses a standard crush washer, eliminating the need to hunt for uncommon sizes. The CNC-machined mounting surface for the upper flange ensures improved hardware fitment. The pan includes a molded o-ring for sealing the flange, eliminating the need for silicone application during installation. IAG’s Competition Pan is designed to use the included OEM style Viton dipstick o-rings with a unique chamfer to aid in the installation of the dipstick and to prevent leaks.
THE COMPETITION SERIES OIL BAFFLE

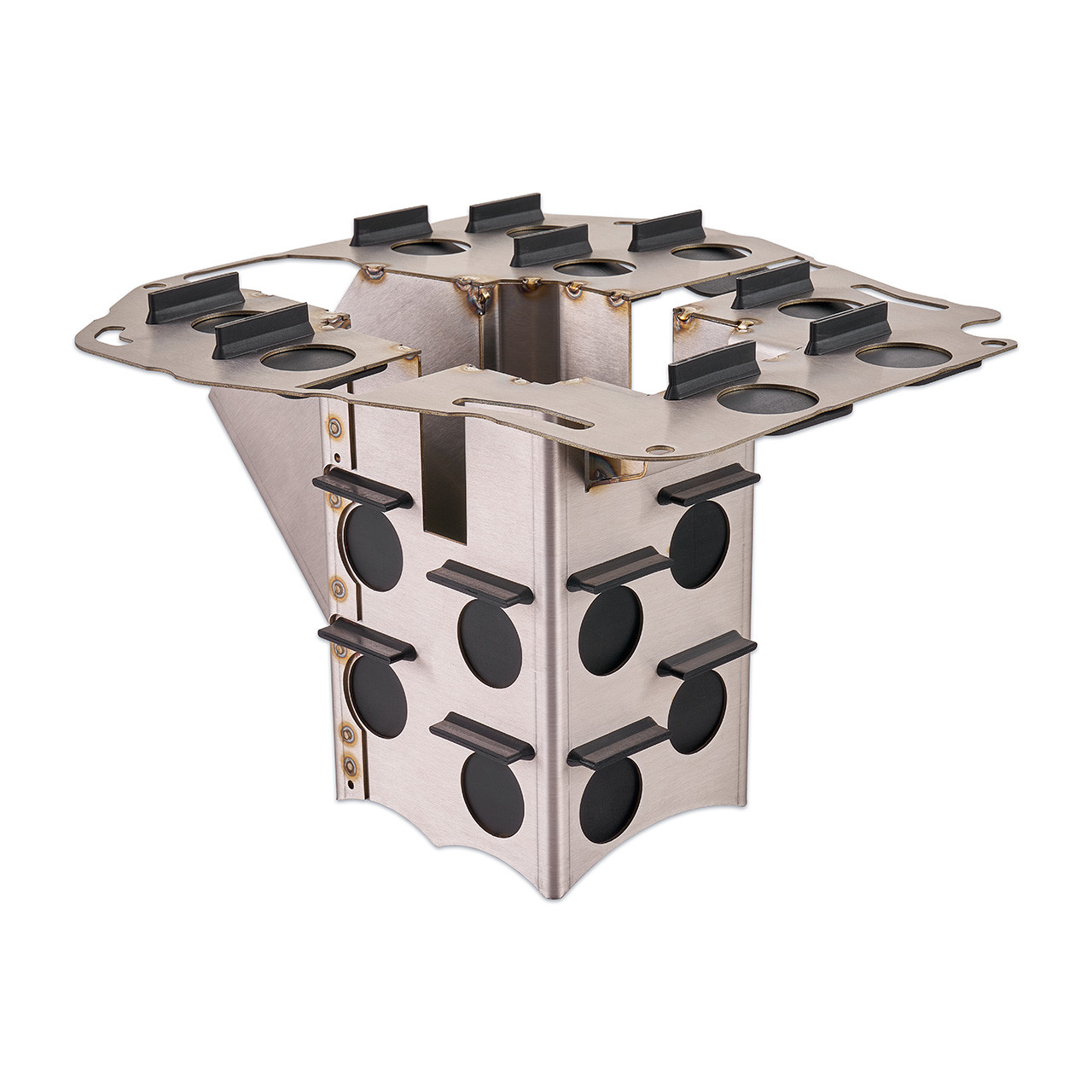

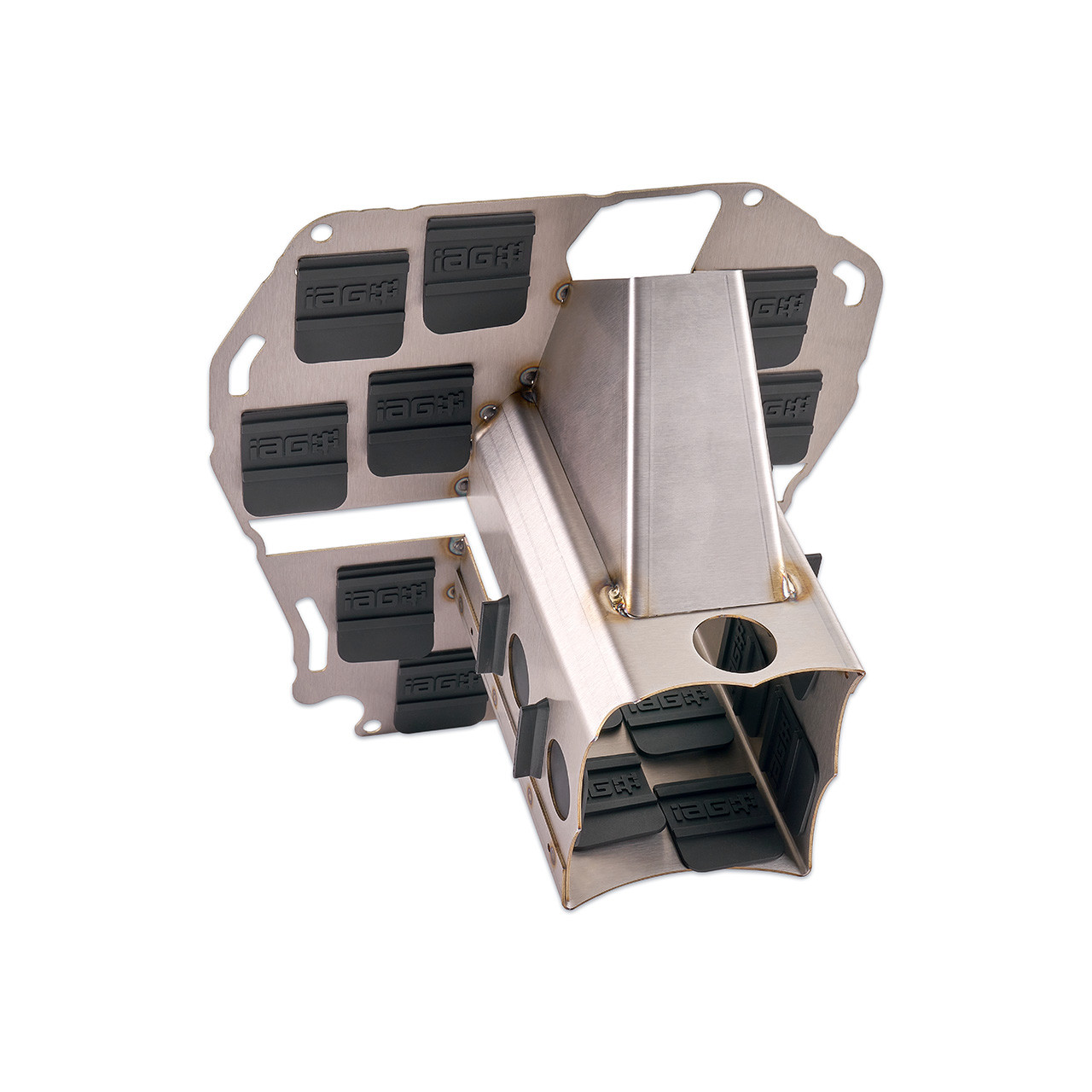

The IAG Competition Series Oil Baffle is designed to reduce blow-by and protect your Subaru's engine from oil starvation during high RPM and G-force driving situations. The Comp Series Baffle is intended for track use, but it is also suitable for street driving applications. This baffle incorporates Viton one-way flapper valves designed to keep oil in the area closest to the pickup. When paired with the louvers in our optional windage tray, our baffle prevents oil from returning to the upper crankcase area and directs it downward into the oil pan, providing a consistent oil supply to the pickup. IAG's built-in oil baffle is compatible with the IAG V2 oil pickup and various other popular oil pickups.
COMPATIBILITY
IAG Performance’s EJ Competition Series Oil Pan is designed to work with the IAG and Killer B oil pickup. It is also compatible with the PN# IAG-ENG-2087 Oil Control Baffle and Windage Tray, or our PN# IAG-ENG-2210 Windage Tray. If you are wanting something more specific to racing applications, we also offer a Competition Series Oil Pan.
What's Inside:
- Product Name: IAG Performance EJ Competition Series Oil Pan For 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT (Silver)
- Part Numbers: IAG-ENG-2203SL
- Material: Cast And CNC Machined Aluminum
- Color: Silver

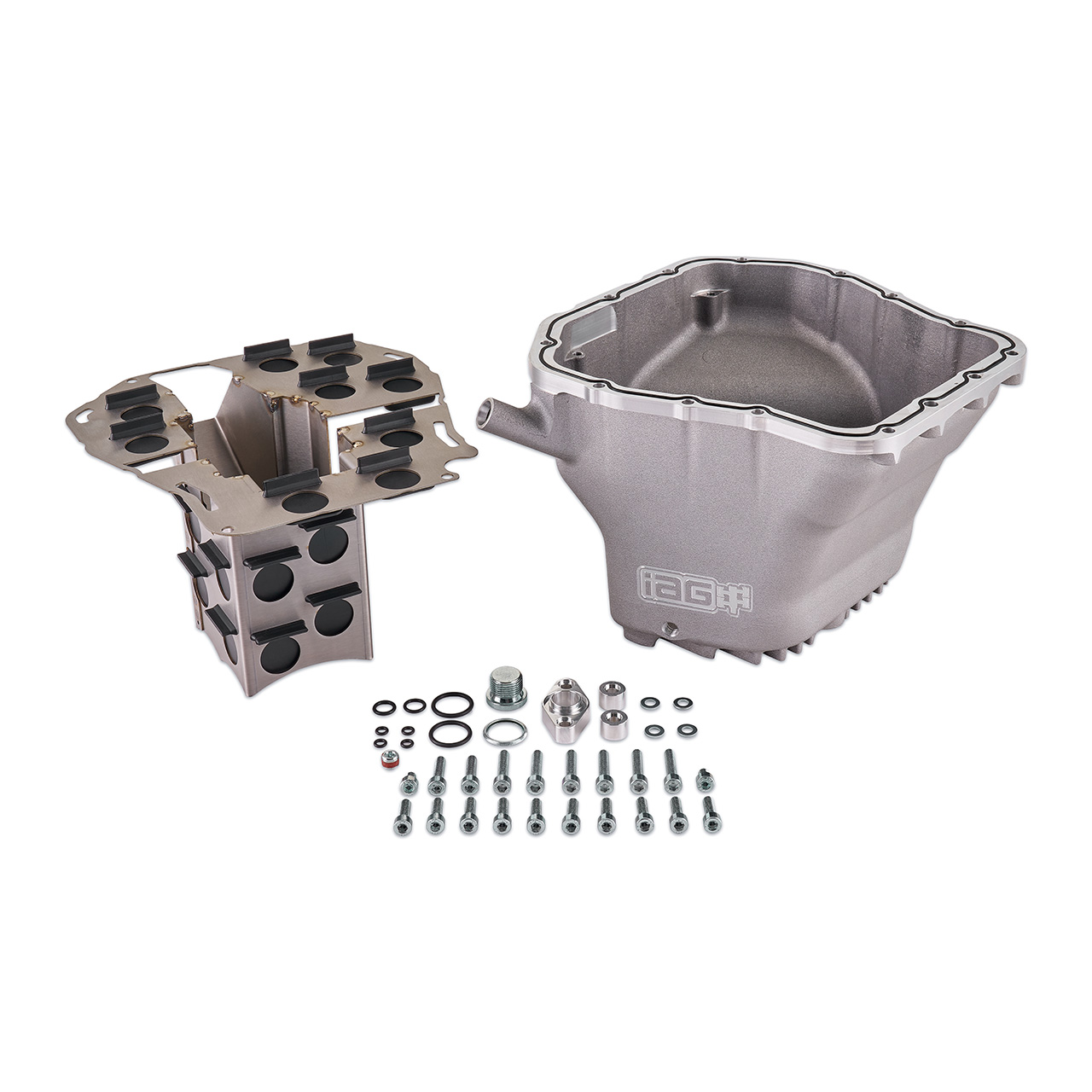

Package Includes:
- (x1) IAG Cast Aluminum Oil Pan with Machined Flanges & Cooling Fins
- (x1) IAG Competition Series Oil Pan Baffle

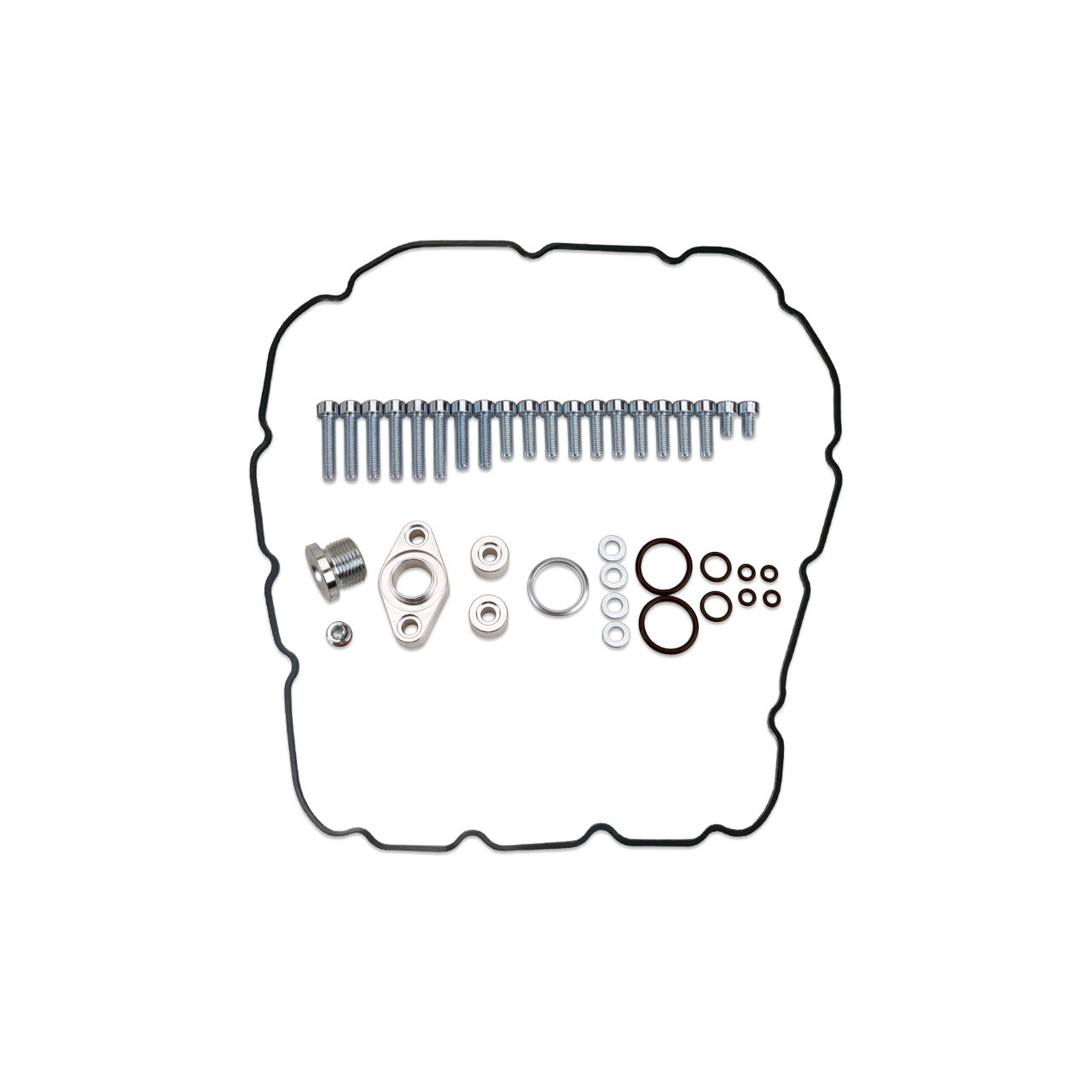

- (x1) Oil Pan Mounting Hardware Pack
- (x1) Oil Baffle Hardware Pack
- (x1) Oil Pickup Spacer Kit PN#IAG-ENG-2081SP
- (x1) M20 Zinc Plated Oil Drain Plug & OEM Style Crush Washer/Gasket
- (x1) 1/8" NPT Zinc Plated Plug
- (x1) Oil Pan O-ring
- (x1) Oil Pan O-ring
- (x2) Oil Pan Dipstick Viton OEM Sized O-rings
- All necessary hardware required for install
- Fitment: 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT
Install Notes:
- IAG oil pickup spacer (Part# IAG-ENG-2081SP) is included and required when using the IAG oil pickup or Killer B oil pickup.
- Flaps should be inspected every 12-24 months depending on use.
- Subaru EJ25 dipstick (Part# 11140AA150) is required when using an IAG Oil Pan on the 02-05 WRX EJ20 engine.
- The pan is designed to work with the IAG and Killer B Oil Pickup.
- Does NOT work with the Moroso or OEM Oil Pickup
Installation Instructions:
Model Year & Fitment
- 2002 Subaru WRX
- 2003 Subaru WRX
- 2004 Subaru WRX
- 2005 Subaru WRX
- 2006 Subaru WRX
- 2007 Subaru WRX
- 2008 Subaru WRX
- 2009 Subaru WRX
- 2010 Subaru WRX
- 2011 Subaru WRX
- 2012 Subaru WRX
- 2013 Subaru WRX
- 2014 Subaru WRX
- 2004 Subaru STI
- 2005 Subaru STI
- 2006 Subaru STI
- 2007 Subaru STI
- 2008 Subaru STI
- 2009 Subaru STI
- 2010 Subaru STI
- 2011 Subaru STI
- 2012 Subaru STI
- 2013 Subaru STI
- 2014 Subaru STI
- 2015 Subaru STI
- 2016 Subaru STI
- 2017 Subaru STI
- 2018 Subaru STI
- 2019 Subaru STI
- 2020 Subaru STI
- 2021 Subaru STI
- 2005 Subaru Legacy GT
- 2006 Subaru Legacy GT
- 2007 Subaru Legacy GT
- 2008 Subaru Legacy GT
- 2009 Subaru Legacy GT
- 2004 Subaru Forester XT
- 2005 Subaru Forester XT
- 2006 Subaru Forester XT
- 2007 Subaru Forester XT
- 2008 Subaru Forester XT
- 2009 Subaru Forester XT
- 2010 Subaru Forester XT
- 2011 Subaru Forester XT
- 2012 Subaru Forester XT
- 2013 Subaru Forester XT
